Rear fold down seats

REAR FOLD DOWN SEATS

Service repair no - 76.71.23

Seat and squab

Remove

Refit

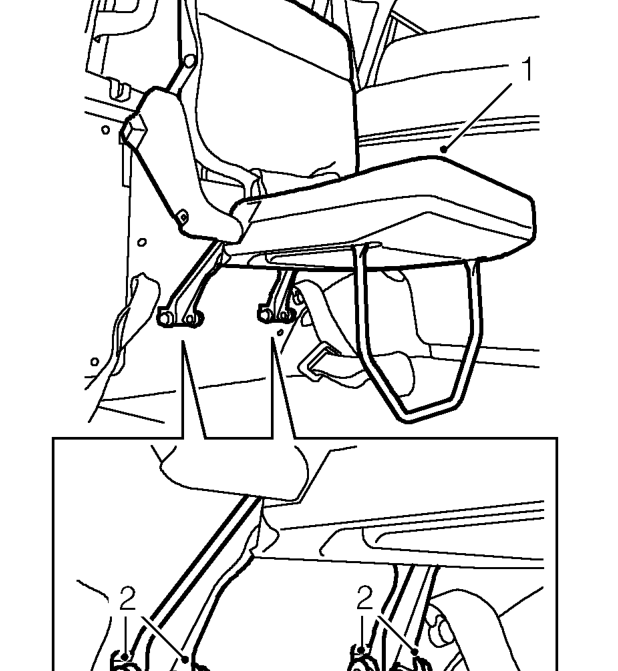

1. Locate the seat in the down position, release the seat belt strap and buckle from their stowed positions.
2. Remove 4 Torx screws from the lower brackets.

Seat squab

Remove

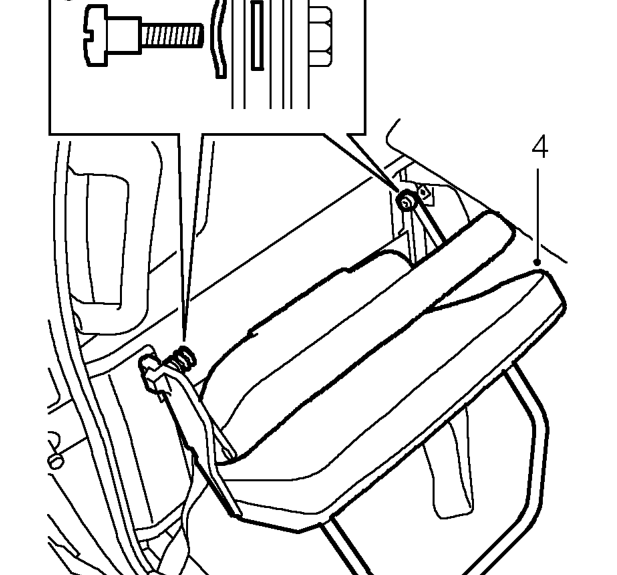

between the link or bracket. Ensure that these washers are fitted in the correct locations when reassembling the seat.

3. Fold the seat up and remove the 2 Torx screws from the upper brackets. Collect 4 washers.
4. Remove seat assembly.
5. Position seat assembly, align upper brackets, and secure with Torx screws tightened to 13 Nm .

(10 lbf ft)

NOTE: Ensure washers are fitted in their correct positions.

6. Align lower brackets, fit Torx screws and tighten to 13 Nm (10 lbf ft)

.

7. Secure the seat belt strap and buckle to their stowed positions.
8. Remove the seat assembly from the vehicle.
9. Remove the pivot bolts and washers securing the seat squab to the frame.

• NOTE: The pivot bolts, securing the seat
• squab and cushion, are fitted with a wavy
• washer under the head and a plain washer
