Front seat belts - 5 door (96 models)

FRONT SEAT BELTS - 5 DOOR (96 MODELS)

Service repair no - 76.73.10

Remove

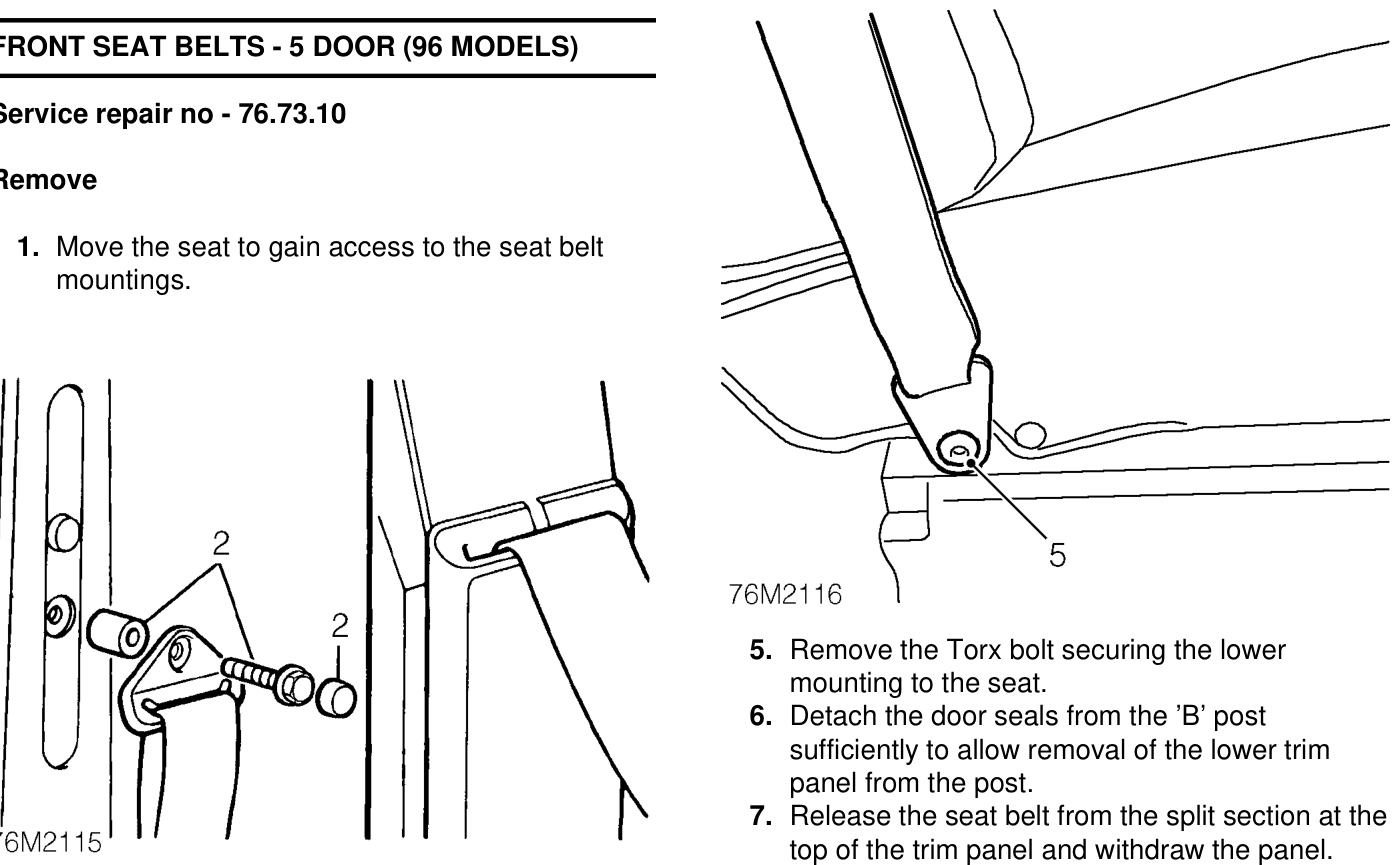

1. Move the seat to gain access to the seat belt mountings.
5. Remove the Torx bolt securing the lower mounting to the seat.
6. Detach the door seals from the ’B’ post sufficiently to allow removal of the lower trim panel from the post.
7. Release the seat belt from the split section at the top of the trim panel and withdraw the panel.
2. Remove the cover and securing bolt to release the upper mounting and spacer from the ’B’ post adjustable mounting.

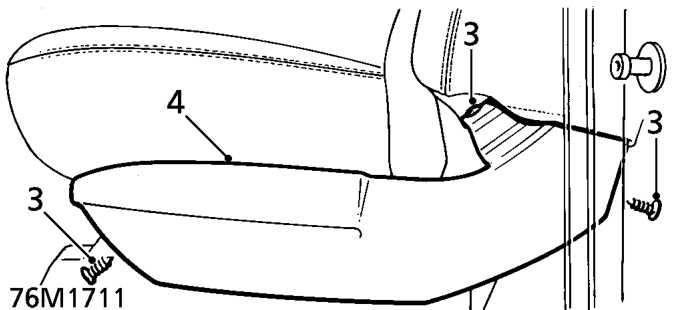

3. Electric seats only: Release fixings securing the seat side valance.
4. Remove the side valance.
