Sunroof glass front and rear

SUNROOF GLASS FRONT AND REAR

Service repair no - 76.82.64

Remove Refit

1. Open sunroof to tilt position.
2. Using a right angled screwdriver remove four retaining screws and detach sunroof glass from upper frame. Retain capnuts and washers.
3. Locate sunroof glass in upper frame complete with capnuts and loosely fit retaining screws.
4. Close sunroof and move glass centrally in upper frame.
5. Open to tilt position and tighten retaining screws.

• CAUTION: Ensure washers under capnuts
• do not twist or spread out when tightening
• retaining screws.

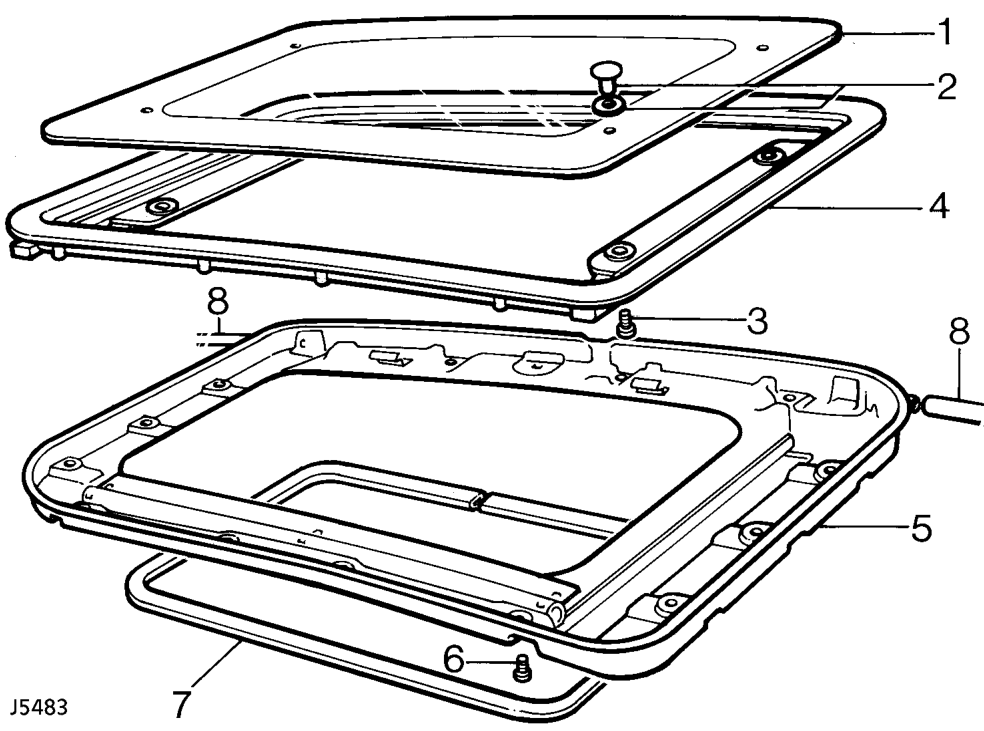

Sunroof components

1. Glass panel 2. Capnut and washer 3. Screw 4. Upper frame assembly

5. Clamping frame assembly 6. Screw 7. Edging trim 8. Drain tube
