SUNROOF ELECTRIC CONTROL UNIT
Service repair no - 76.82.73
The control unit serves both front and rear sunroofs and is sited above the front switches behind headlining.
Remove
- Disconnect battery negative lead.
- Ensure sunroof is in normally closed position.
- NOTE: If the electric motor has failed the
- sunroof can be closed manually using an
- allen key to turn motor spindle.
- Remove switch panel from stowage pocket panel
- Remove interior lamp from stowage pocket panel
- Remove alarm ultrasonic unit.
- Unscrew ten fixings and remove stowage pocket from headlining.

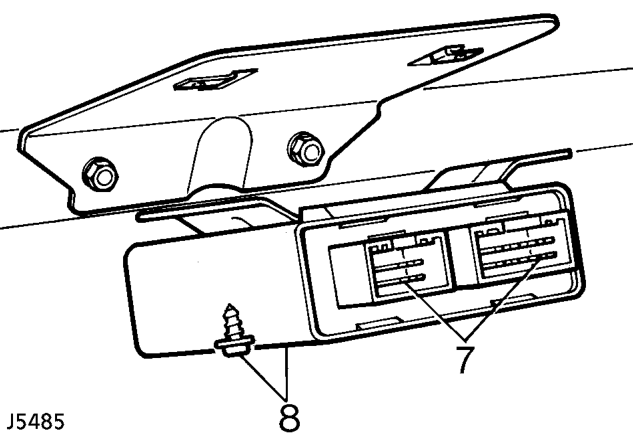

- Disconnect electric plugs from control unit.
- Remove two retaining screws and control unit.
Refit
- Reverse removal procedure.
