SUN VISOR WHEEL ARCH LINER - FRONT

Service repair no - 76.10.47 Service repair no - 76.10.48

Remove Remove

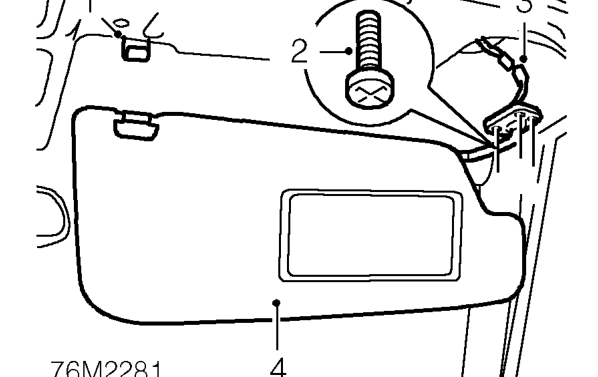

Remove remove – Service repair no - 76.10.47 Service repair no - 76.10.48
  1. Release sun visor from headlining retaining clip.
  2. Remove 3 screws securing sun visor to body.
  3. Release sun visor and disconnect multiplug.
  4. Remove sun visor.

Refit Refit

  1. Position sun visor and connect muliplug.
  2. Position sun visor to headlining and secure with screws.
  3. Secure sun visor to headlining clip.
  4. Raise front of vehicle and support on safety stand.
  5. Remove front road wheel.
Refit refit – Remove front road wheel.
  1. Remove 4 wheel arch liner retainers.
  2. Remove wheel arch liner.
  3. Fit wheel arch liner and secure with retainers.
  4. Fit front road wheel and tighten nuts to 126 Nm .

(93 lbf ft)

  1. Remove stand and lower vehicle.
