MUD FLAP - REAR - LH REAR COMPARTMENT LOWER TRIM PANEL - LH - WITH REAR AIR CONDITIONING FITTED Service repair no - 76.10.85 Service repair no - 76.13.03/20 Remove Remove

  1. Remove rear compartment lower trim panel. See this section.
Remove rear compartment lower trim panel. See this section.

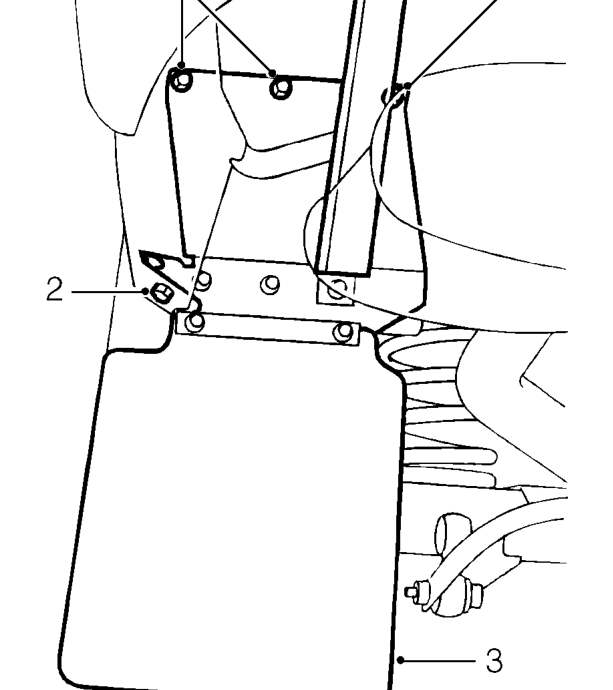

  1. Remove 5 nuts and bolts securing mud flap to body and bumper valance.
  2. Remove mud flap.

Refit

  1. Position mud flap to body, fit bolts and tighten nuts to 10 Nm (7 lbf ft)

.

  1. Fit rear compartment lower trim panel. See this section.
  2. Remove rear fold down seat. See this section.
  3. Remove fold down rear seat belts. See this section.

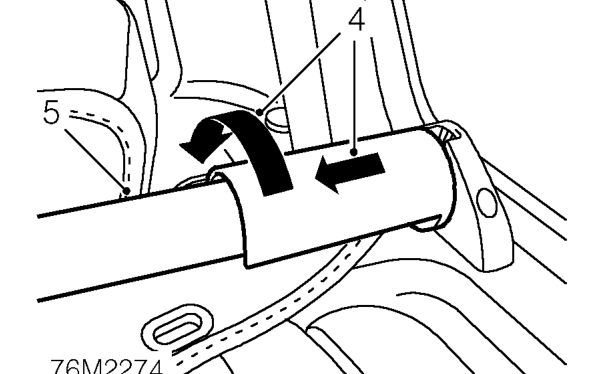

  4. Remove ’E’ post trim casing. See this section.
Remove ’E’ post trim casing. See this section.

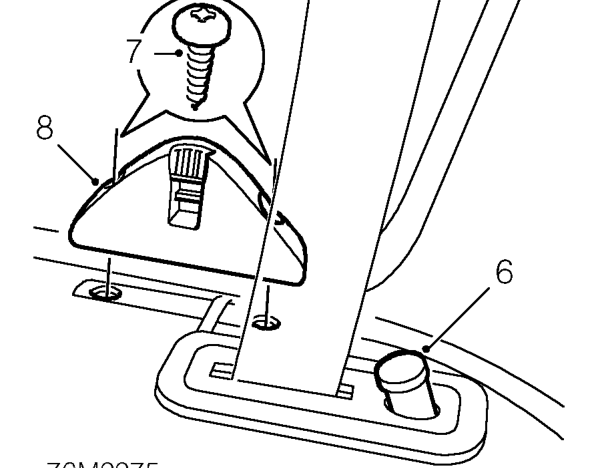

  1. Release load space cover end sleeve from mounting bracket.
  2. Remove load space cover.
Remove load space cover.
  1. Press rear seat squab release button and fold squab forward.
  2. Remove 2 screws securing load space cover mounting bracket.
  3. Remove mounting bracket.
