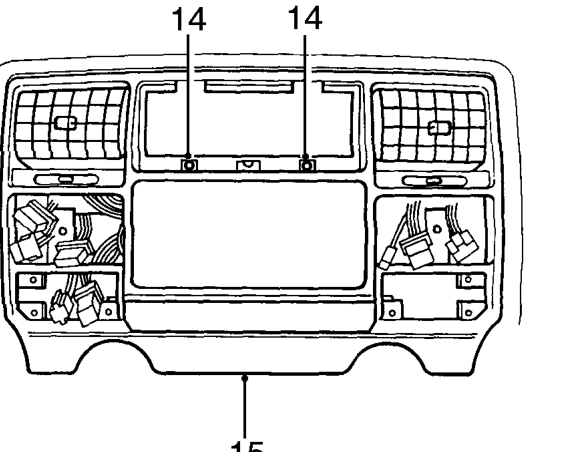

Dash panel assembly

DASH PANEL ASSEMBLY

Service repair no - 76.46.23

Remove

14. Remove 2 screws securing louvre panel.
15. Remove louvre panel from dash panel.

Refit

16. Position louvre panel, feed harness connectors through their correct apertures,and align to dash panel. 10. Remove steering wheel.

CAUTION: When refitting avoid trapping of 11. Remove column switch. electrical wiring.

17. Fit and tighten screws securing louvre panel. 12. Remove instrument binnacle.
18. Fit panel retaining screw cover.
19. Position heater control unit to panel and secure 13. Remove radio. with screws. 14. Remove exterior mirrors switch panel.
20. Fit heater graphic display panel and secure with 15. Remove coin tray. screws. 16. Remove switch panel.
21. Fit heater control and blower switch knobs. 17. Remove clock.
22. Fit clock. See ELECTRICAL, Repair. 18. Undo screw securing mounting bracket and
23. Position coin tray and secure to tags.
24. Position radio cage, feed electrical connectors 19. Set heater controls fully clockwise. and aerial through cage, and position to panel.
25. Bend back radio cage retaining tags.
26. Fit radio. See ELECTRICAL, Repair.
27. Connect battery negative lead.
1. Move front seats to rearmost position.
2. Disconnect battery negative lead.
3. Disconnect air bag multiplugs under dash panel.

• CAUTION: When air bags are fitted,
• reference must be made to the Airbag
• Supplementary Restraint System section.

4. Remove passenger glove box.
5. Remove driver’s side access panel.
6. Remove centre console assembly. See this section.
7. Remove airbag from steering wheel. See SUPPLEMENTARY RESTRAINT SYSTEM, Repair.
8. Remove passenger’s airbag from dash panel. See SUPPLEMENTARY RESTRAINT SYSTEM, Repair.
9. Release clamp and lower steering column. See STEERING, Repair. See SUPPLEMENTARY RESTRAINT SYSTEM, Repair. See ELECTRICAL, Repair. See ELECTRICAL, Repair.

position passenger’s side relay assembly aside.
