Chassis and bodyDash panel assembly · page 2 of 2

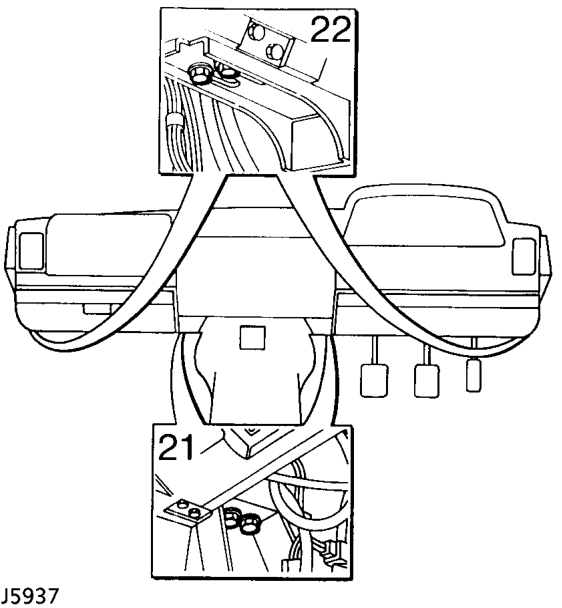

  1. Note position of levers, disconnect heater control cables from levers and outer cable from retaining clips.
Note position of levers, disconnect heater control cables from levers and outer cable from
  1. Remove 4 nuts securing instrument mounting
  2. Remove 4 bolts securing dash panel to centre lower mounting brackets.

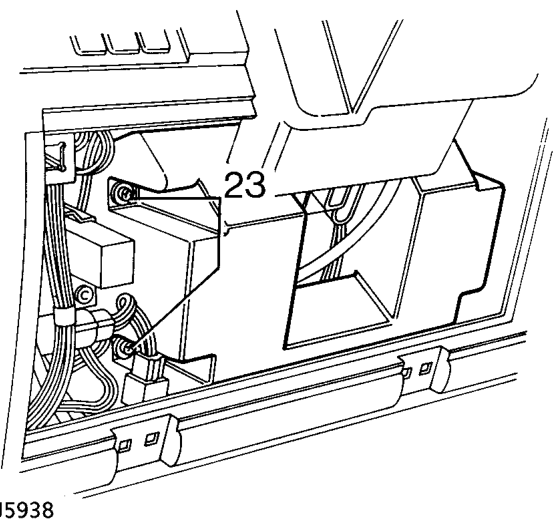

  3. Remove 4 bolts securing dash panel to side lower mounting brackets.
Remove 4 bolts securing dash panel to side lower mounting brackets.
  1. With assistance:
  2. Driver’s side: Disconnect 6 multiplugs
  3. Disconnect 3 multiplugs connecting dash
  4. With assistance:

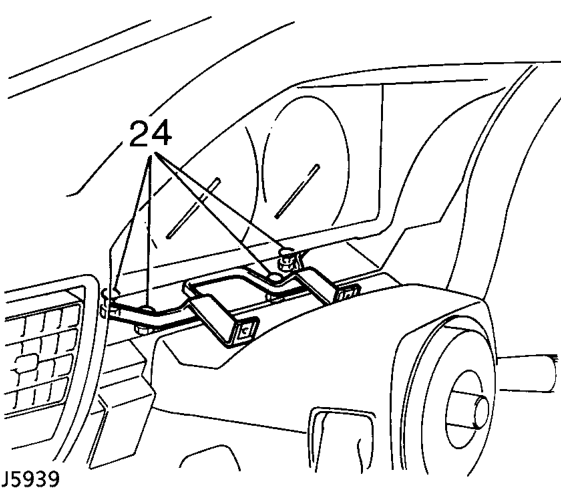

  5. Undo 4 screws and remove 2 driver’s knee bolster pads from below steering column.
Undo 4 screws and remove 2 driver’s knee bolster pads from below steering column.

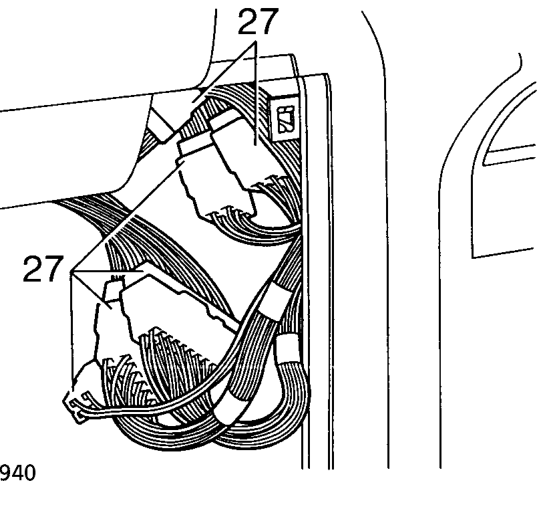

bracket to dash panel.

bracket to dash panel.

Manoeuvre dash panel partially rearward.

connecting dash harness to main harness.

harness to fusebox. Lift dash panel rearward to clear fixings and remove from vehicle.
