Land Rover Discovery Body Repair Manual (1995 on)04 · Chassis and body
04 · Body & interior

Rear seat squab rear seat squab cover

Make
Land Rover
Model
Discovery Body Repair Manual
Year
1995 on
Section
Repair › Rear seat squab rear seat squab cover
Chassis and bodyRear seat squab rear seat squab cover

REAR SEAT SQUAB REAR SEAT SQUAB COVER

Service repair no - 76.70.38 Service repair no - 76.70.79/80

Remove Remove

  1. Fold the rear seat down.
  2. Remove the two seat squab securing bolts.
  3. Remove the rear seat squab from the seat assembly and withdraw it from the vehicle. See this section.
  4. Remove the rear seat back finisher from the squab.

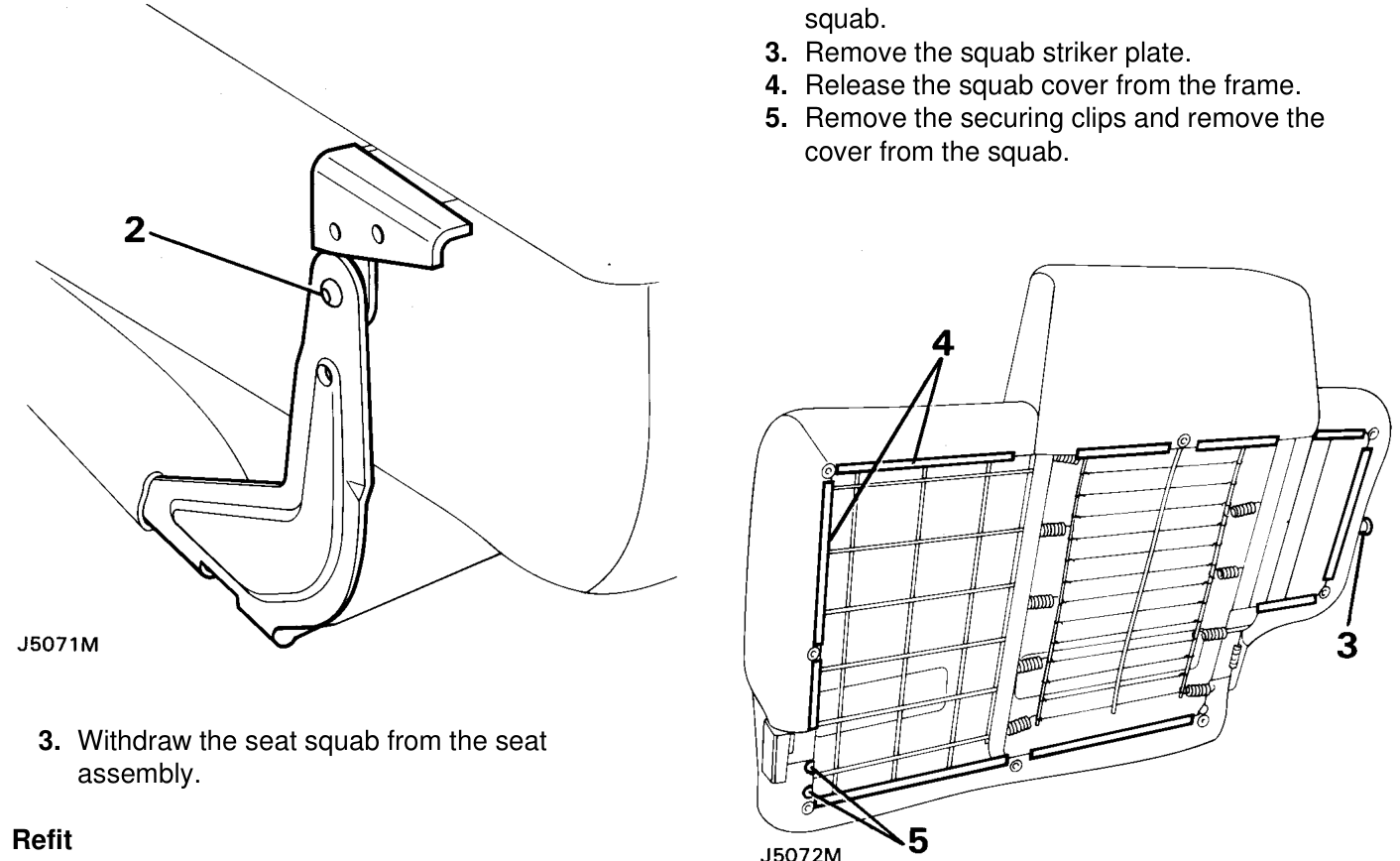

Remove remove – Remove the rear seat back finisher from the squab.
  1. Remove the squab striker plate.
  2. Release the squab cover from the frame.
  3. Remove the securing clips and remove the cover from the squab.
  4. Withdraw the seat squab from the seat assembly.

Refit

  1. Reverse removal procedure.

Refit

  1. Reverse removal procedure.
