Refit drinks tray

Refit DRINKS TRAY

20. Position centre console assembly, ensuring Service repair no - 76.46.41 harnesses and connectors are not trapped and are routed to their correct locations. Remove
21. Connect cigar lighter multiplug and illumination bulb Lucar.
22. Align centre console to body fixings and fascia.
23. Fit and tighten screws securing centre console to body.
24. Lubricate hand brake lever to cable clevis pin.
25. Align hand brake cable to lever, fit clevis pin and secure with clip.
26. Secure hand brake lever gaiter to centre console.

Models fitted with electric front seats

27. Position electric front seat switches,connect multiplugs and secure to centre console.

All models

28. Position centre console switch pack and connect multiplugs to switches.
29. Align switch pack to centre console and secure with screws.
30. Fit centre console switch pack cover.

Refit

31. Fit centre console rubber mat.
32. Fit gear selector lever knob and secure gaiter.
33. Fit transfer gear lever knob and secure gaiter.
34. Reconnect battery earth lead.
1. Disconnect battery negative lead.
2. Remove ash tray. See this section.
3. Remove switch pack. See this section.

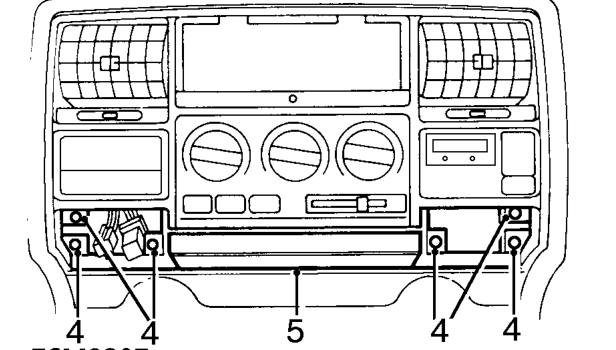

4. Remove 6 screws securing drinks tray to dash panel central louvre panel.
5. Remove drinks tray.
6. Position drinks tray to dash panel central louvre panel and secure with screws.
7. Fit switch pack. See this section.
8. Fit ash tray. See this section.
9. Connect battery negative lead.
