Chassis and bodyRefit interior mirror (96 models) · page 1 of 2

Refit INTERIOR MIRROR (96 MODELS)

  1. Reverse removal procedure. Service repair no - 76.10.51 - Manual
  2. Tighten Torx screws securing seat to 29 Nm (21 Service repair no - 76.10.54 - Auto dimming .

lbf ft)

  1. Tighten bolts securing seat slides to 22 Nm (16 Remove .

lbf ft)

  1. Tighten Torx screw securing seat belt to 32 Nm .

(24 lbf ft)

NOTE: To remove manual mirror, follow step 8 only.

  1. Remove headlining front pocket.
  2. Release left hand sun visor from clip and move aside.
(24 lbf ft) – Release left hand sun visor from clip and move aside.

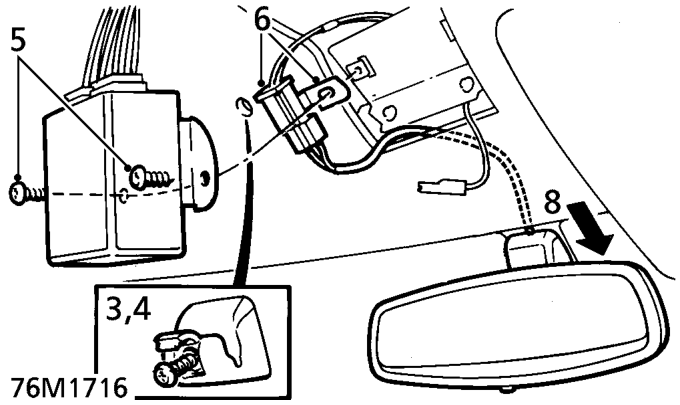

  1. Release sun visor clip screw cover.
  2. Remove clip securing screw and remove clip.
  3. Remove 2 screws securing sunroof ECU and move ECU aside.
  4. Locate mirror multiplug, remove clip and disconnect multiplug.
  5. Remove tape securing harness (behind headlining).
  6. Release mirror from screen by applying sharp downward pressure to the base.
  • CAUTION: Do not use tools to assist
  • removal. Mirror base should be moved in
  • direction of arrow, parallel to windscreen.
  1. Release harness from behind headlining and remove mirror.
