’E’ POST TRIM CASING - RH

’e’ post trim casing - rh

Service repair no - 76.13.13/03

Remove

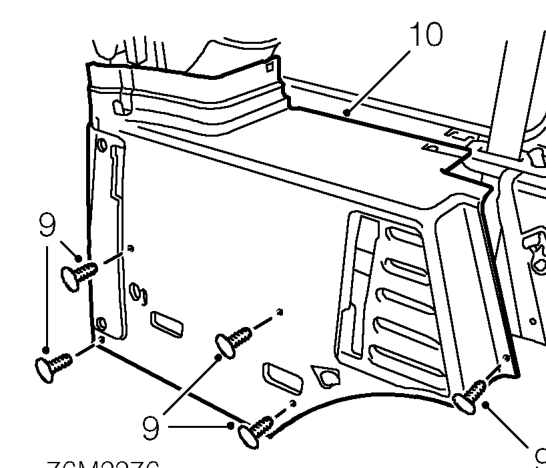

  1. Remove 5 trim studs securing trim panel.
  2. Remove trim panel.

Refit

  1. Fit and align trim panel.
  2. Fit trim panel retaining studs.
  3. Position load space cover mounting bracket and secure with screws.
  4. Fold rear seat squab back and secure to latch.
  5. Position load space cover to mounting brackets and secure.
  6. Fit ’E’ post trim casing. See this section.
  7. Fit fold down rear seat belts. See this section.
  8. Fit rear fold down seat. See this section.

Refit

  1. Remove rear speaker. See ELECTRICAL, Repair.
’e’ post trim casing - rh – Remove rear speaker. See ELECTRICAL, Repair.

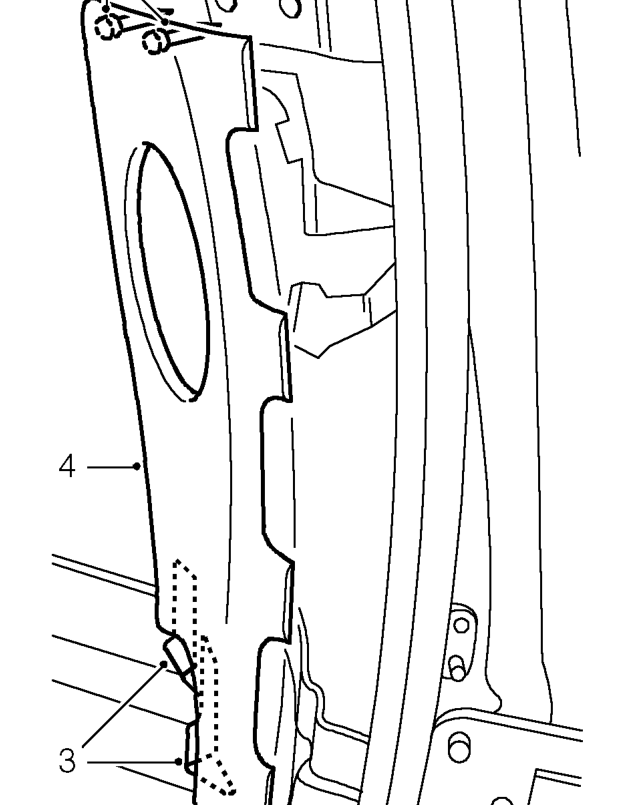

  1. Release 2 ’E’ post finisher retaining studs from alpine light trim.
  2. Release 2 ’E’ post finisher retaining clips from lower trim panel.
  3. Remove ’E’ post finisher.
  4. Position ’E’ post finisher clips to lower trim panel.
  5. Secure ’E’ post finisher studs to alpine light trim.
  6. Fit rear speaker. See ELECTRICAL, Repair.
