SUNROOF REGULATOR MANUAL

Service repair no - 76.83.03/04

FRONT REAR

Remove Remove

1. Ensure sunroof is in normally closed position.
2. Remove retaining screw and regulator handle.
3. Remove switch panel from stowage pocket panel
4. Remove interior lamp from stowage pocket panel
5. Remove alarm ultra sonic unit. Refit
6. Unscrew ten fixings and remove stowage pocket from headlining.

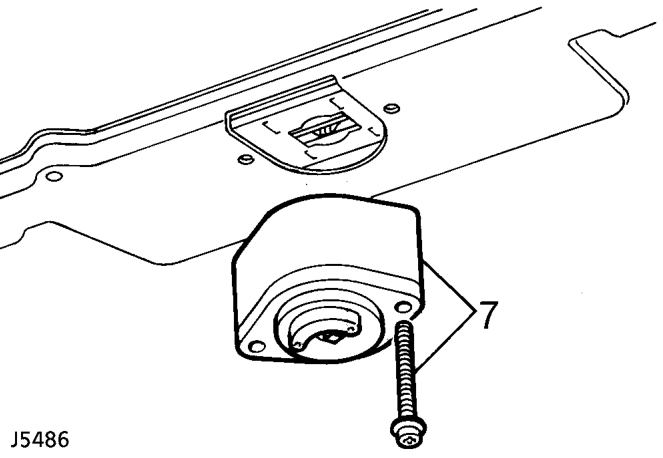

7. Remove two retaining screws and regulator from clamping frame.

the regulator spindle in the rack - this may result in incorrect operation of the sunroof.

Refit

8. Reverse removal procedure.

CAUTION: Ensure the regulator is aligned with fixing holes and the sunroof is in the normally closed position. DO NOT rotate the regulator spindle in the rack - this may result in incorrect operation of the sunroof.

1. Ensure sunroof is in normally closed position.
2. Remove retaining screw and regulator handle.
3. Remove headlining. See this section.
4. Remove two retaining screws and regulator from clamping frame.
5. Reverse removal procedure.

• CAUTION: Ensure the regulator is aligned
• with fixing holes and the sunroof is in the
• normally closed position. DO NOT rotate
