AND WASHERS, Repair.

• NOTE: If heated front screen: 2 electrical
• multiplug connectors are located under
• the decker [cowl] panel. To access release
• decker panel.

7. Remove RH ’A’ post finisher.
8. Remove header finisher.
9. Apply masking tape to protect paint finish around glass.

Remove

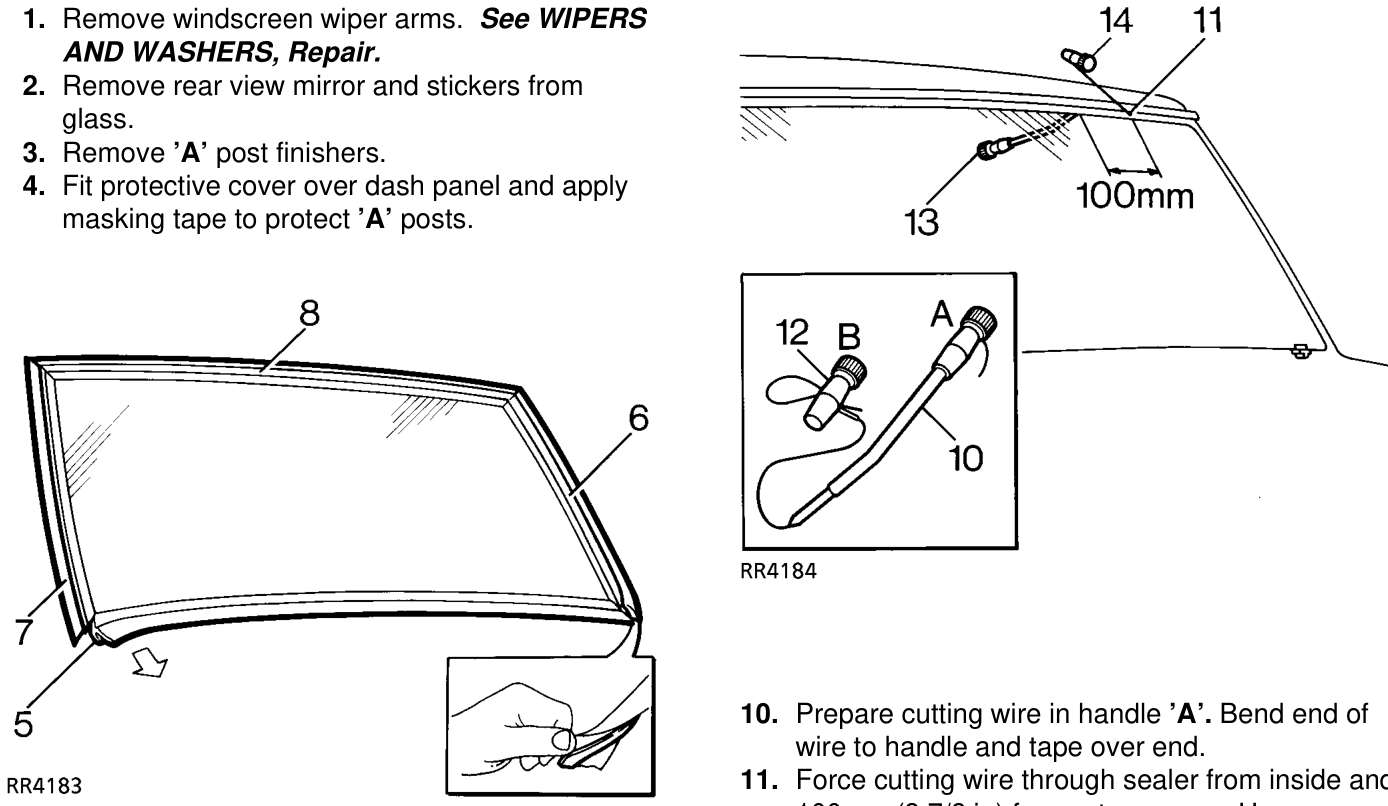

1. Remove windscreen wiper arms. See WIPERS

AND WASHERS, Repair.

2. Remove rear view mirror and stickers from glass.
3. Remove ’A’ post finishers.
4. Fit protective cover over dash panel and apply masking tape to protect ’A’ posts.
10. Prepare cutting wire in handle ’A’. Bend end of wire to handle and tape over end.
11. Force cutting wire through sealer from inside and
12. Attach handle
5. Ease one end of bottom finisher away from glass, pull to disengage finisher flange and
13. With an assistant on the inside:

remove.

6. Lift lip of LH ’A’ post finisher and release sealing strip along its length, pull to disengage finisher
14. From the outside:

flange from glass and remove.

obscuration band (See item 18).

15. Remove handle

100mm (3 7/8 in) from a top corner. Use a needle if necessary to make a pilot hole. ’B’. Allow 200mm (7 7/8 in) of wire between handles, tape over end of wire. Wedge the tube of the handle ’A’ between glass and body flange 100mm (3 7/8 in) ahead of hole in sealer. Carefully cut sealer from flange using a straight pull away from the glass. Continue in 100mm (3 7/8 in) steps around the glass, use a sawing action at the corners.

• CAUTION: Along the bottom edge, great
• care must be taken to cut up to the 2
• supports, positions indicated on the

’B’, withdraw the cutting wire and insert it through the sealer between the supports. Refit handle ’B’.
