AND WASHERS, Repair. (page 3 of 3)

27. Remove protective coverings and tape.

28. Pierce top and pre-cut nozzle to sealer cartridge,

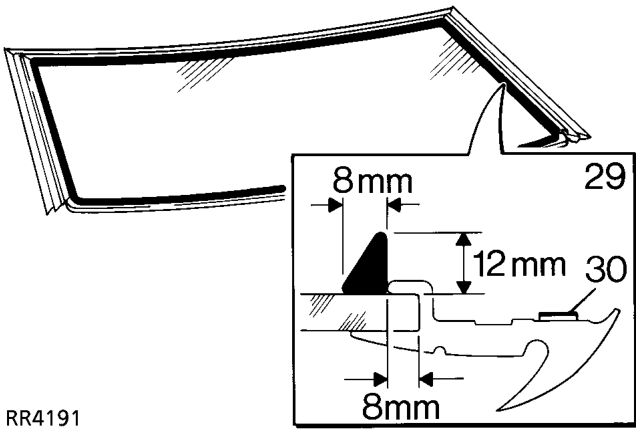

29. Apply a continuous bead of adhesive sealant

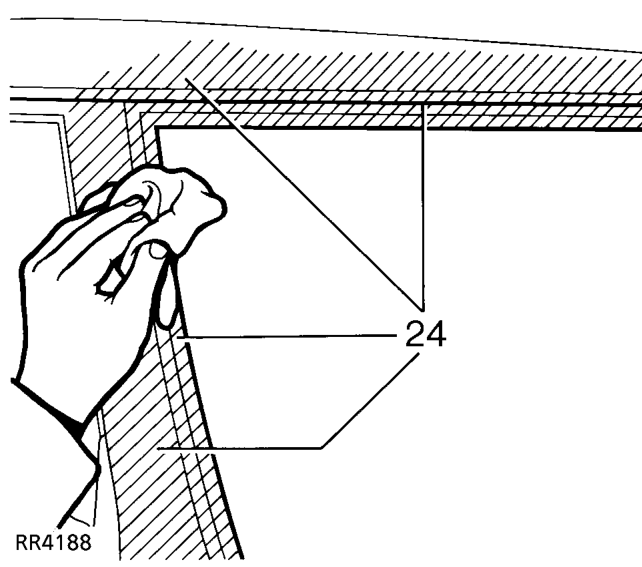

24. Ensure body flanges and surfaces covered by the finishers are clean.
30. Remove protective covering (RED) from side

25. Shake the primer container for at least 30 seconds.

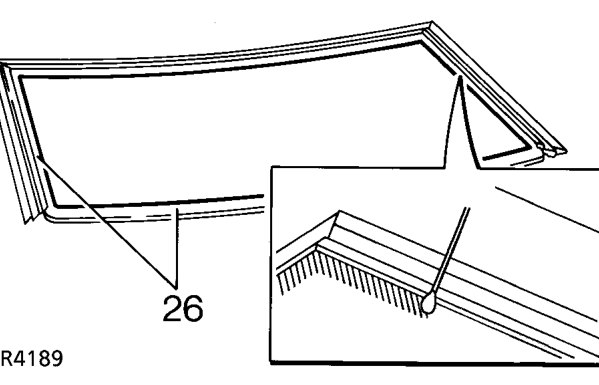

26. Using a cotton bud, apply Glass Primer (green cap) to inside face of glass, 20mm (13/16 in) strip around inside of finishers and 30mm (1 1/8 in) wide along bottom edge. This must be touch dry before applying adhesive.

remove lid and shake out crystals and install cartridge in applicator gun.

around the glass as shown. Vertical edge of sealer to abut finishers and to be 8mm (5/16 in) from bottom edge of glass.

finisher sealing strip.
