System precautions driver’s airbag module

SYSTEM PRECAUTIONS DRIVER’S AIRBAG MODULE

CAUTION: Before and during any removal Service repair no - 76.74.01 operations within the SRS section, note routing and position of all harnesses to aid correct refitting and to avoid accidentally trapping cables. deployed. CAUTION: During refitting of any item within the SRS section, always ensure Remove connectors are fully engaged and latched before proceeding to the next stage of the operation.

• WARNING: All the airbag system
• components, including the wiring harness,
• MUST be renewed after the airbags have

1. Turn steering wheel 90˚ from horizontal.
2. Switch off ignition.
3. Disconnect battery negative ’-’ and then the positive ’+’ lead.

CAUTION: Always disconnect both leads.

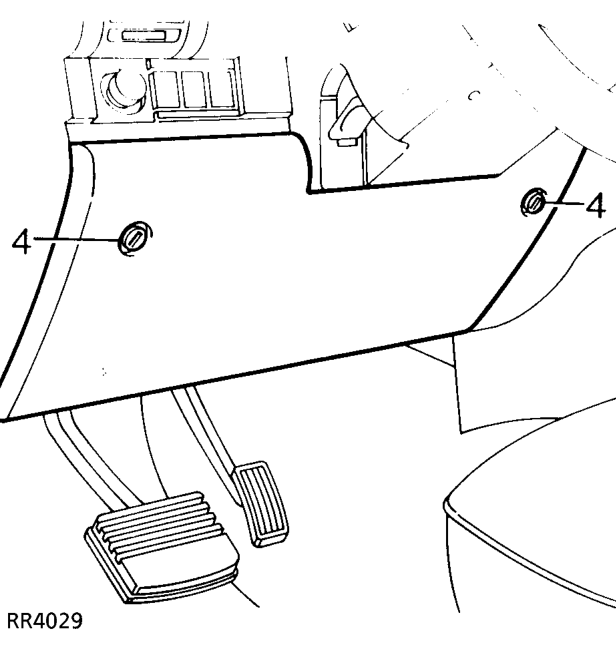

4. Release 2 turnbuckles and remove dash lower panel.
