Deployment with module removed from vehicle.

Deployment with module removed from vehicle.

Driver’s Airbag Module

These guidelines are written to aid authorised personnel to carry out the safe disposal of airbag modules when removed from the vehicle.

Deploy airbag modules in a well ventilated designated area.

Ensure airbag module is not damaged or ruptured before deploying.

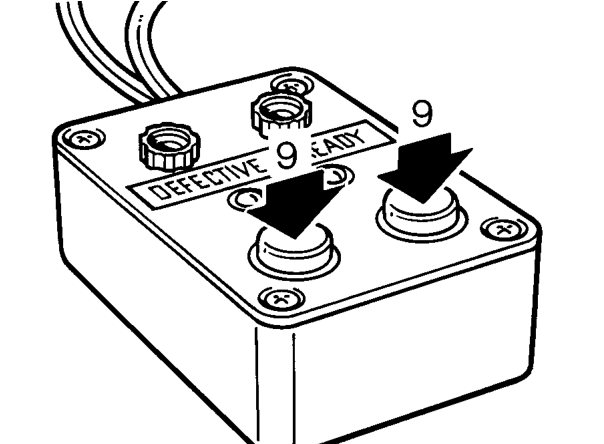

9. Press both operating buttons to deploy airbag module.
10. DO NOT return to airbag module for 30 minutes.
11. Using gloves and face mask, remove airbag module from steering wheel, place airbag module in plastic bag and seal bag.
12. Transport deployed airbag module to designated area for incineration.

NOTE: DO NOT transport airbag module in the vehicle passenger compartment.

13. Scrap all remaining parts of airbag system. DO NOT re-use or salvage any parts of the airbag system including steering wheel.

WARNING: Only use the LAND ROVER approved deployment equipment.

1. Carry out deployment tool self test.
2. Remove airbag module from steering wheel. See this section.

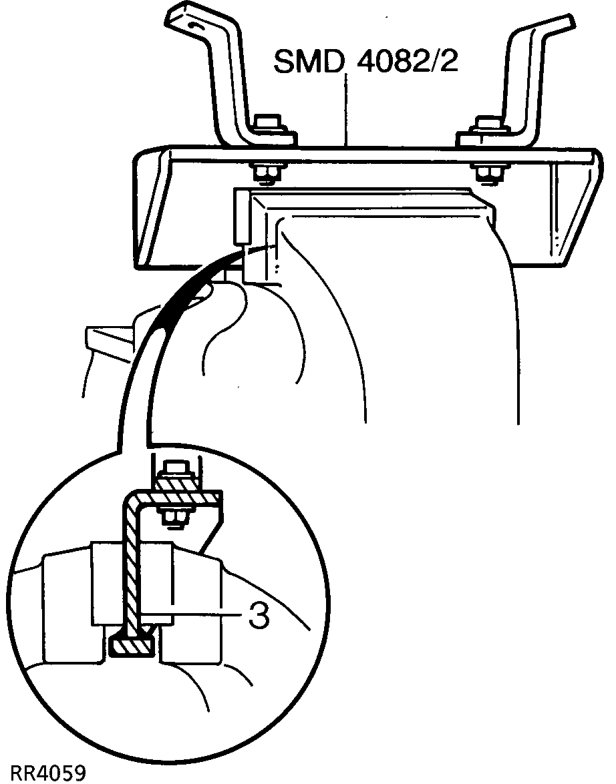

3. Position tool SMD 4082/2 in vice, ensuring that vice jaws grip tool above bottom flange to prevent possibility of tool being forced upwards from vice. Tighten vice.
