Supplementary restraint systemCrash sensor - distributed SRS refit

CRASH SENSOR - DISTRIBUTED SRS Refit

Service repair no - 76.74.04

Remove

  1. Disconnect battery negative lead.
  2. LH sensor only: Slacken power steering reservoir clamp and lift reservoir to provide access. Diesel model only: Remove jack and mounting bracket.

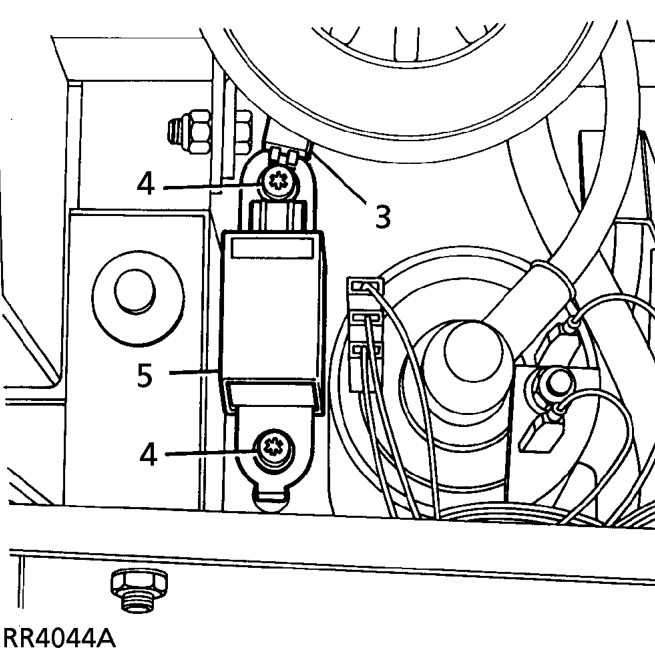

Crash sensor - distributed srs refit – LH sensor only: Slacken power steering reservoir clamp and lift reservoir to provide acces
  1. Disconnect multiplug from sensor
  • CAUTION: Ensure airbag harness
  • connector seal and anti-backout DO NOT
  • come adrift when disconnecting sensor.
  1. Use special socket, remove 2 screws securing crash sensor to body.
  2. Remove crash sensor.
  3. Reverse removal procedure.
  4. Tighten crash sensor securing screws to 10 Nm Ensure multiplug is fully engaged on

(7 lbf ft).

sensor and retained by its latch.

  1. Check Supplementary Restraint System using Testbook.
