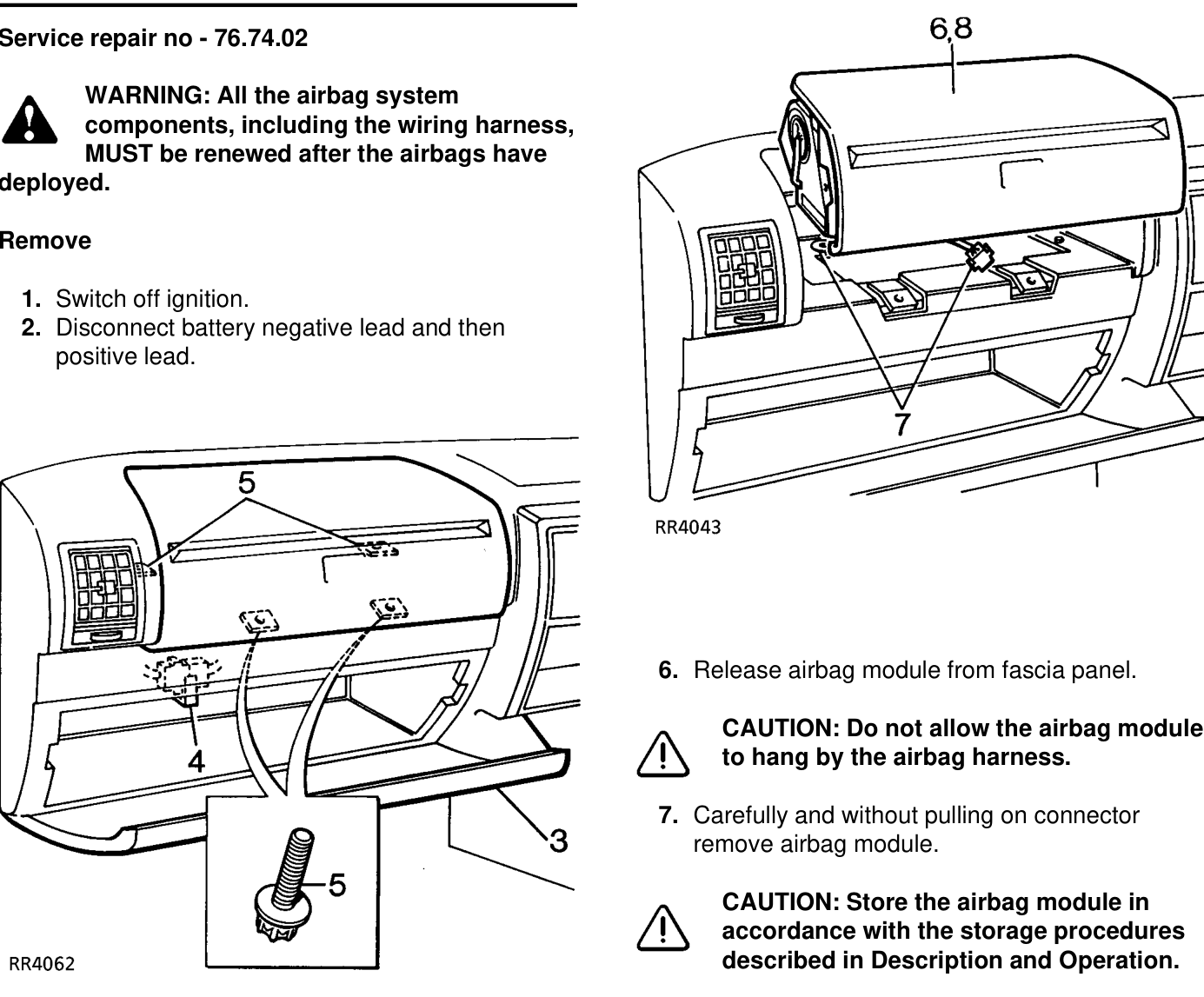

Passenger’s airbag module

PASSENGER’S AIRBAG MODULE

Service repair no - 76.74.02

• WARNING: All the airbag system
• components, including the wiring harness,
• MUST be renewed after the airbags have
• deployed.

Remove

1. Switch off ignition.
2. Disconnect battery negative lead and then positive lead.
6. Release airbag module from fascia panel.

CAUTION: Do not allow the airbag module to hang by the airbag harness.

7. Carefully and without pulling on connector remove airbag module.

• CAUTION: Store the airbag module in
• accordance with the storage procedures
• described in Description and Operation.

3. Open glovebox and disconnect harness connector from airbag module.
4. Use special socket and long extension, remove Refit 2 torx head screws securing front of airbag module to fascia panel.
5. Use special socket, remove 2 torx head screws securing rear of airbag module to fascia panel.
10. Check Supplementary Restraint System using

• NOTE: If airbag module is to be replaced
• the serial number must be recorded in the
• vehicle service record.

8. Reverse removal procedure.
9. Tighten airbag module securing screws to 8 Nm (6 lbf ft).

CAUTION: Take care not to cross thread screws.

Testbook.
