Supplementary restraint systemWARNING: Do not lean over module whilst connecting.

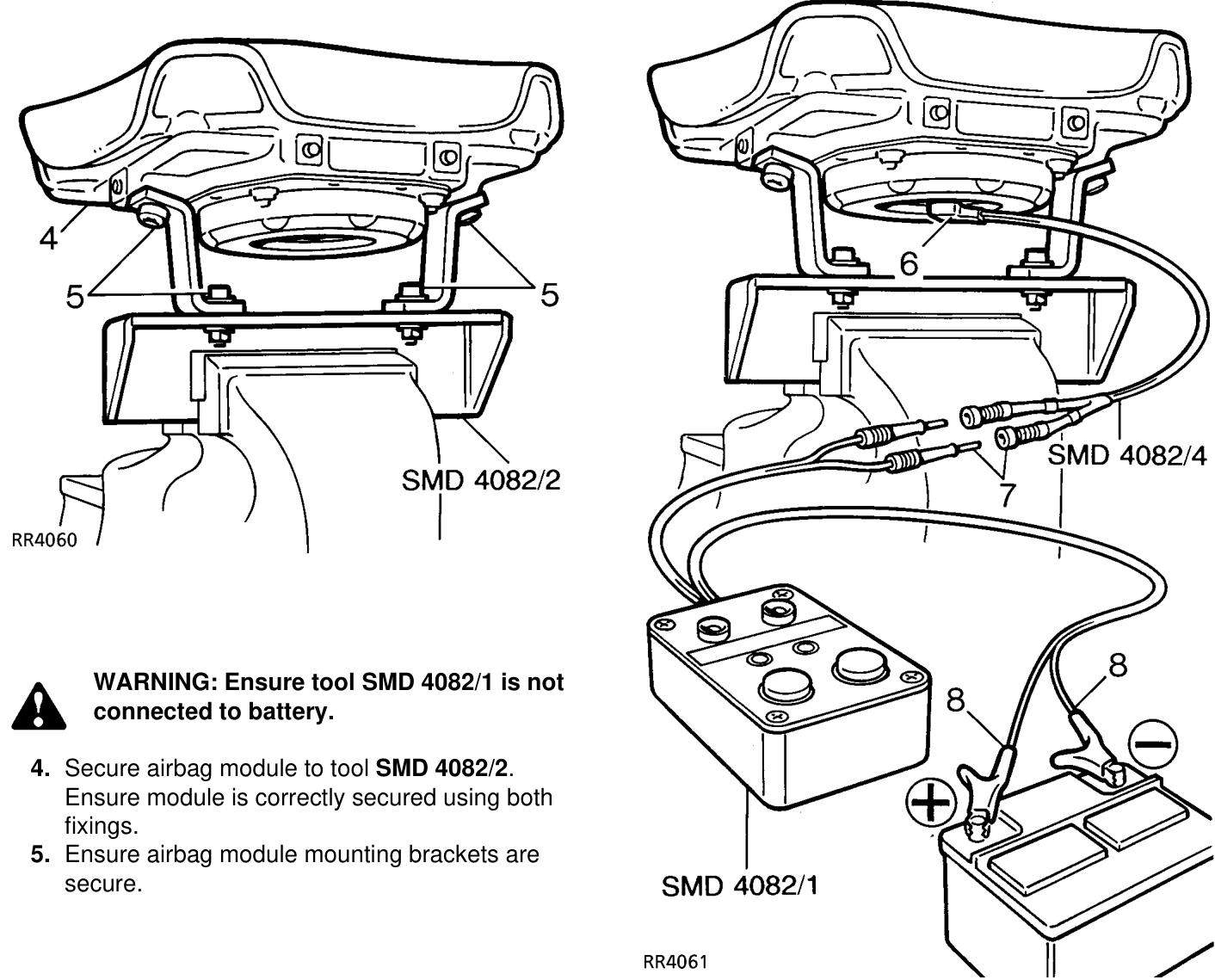

Diagram

WARNING: Ensure tool SMD 4082/1 is not connected to battery.

  1. Secure airbag module to tool SMD 4082/2. Ensure module is correctly secured using both fixings.
  2. Ensure airbag module mounting brackets are secure.
  3. Connect flylead SMD 4082/4 to airbag module.
  4. Connect flylead SMD 4082/4 to tool SMD 4082/1.

WARNING: Do not lean over module whilst connecting.

  1. Connect tool SMD 4082/1 to battery.
  • WARNING: Ensure all personnel are
  • standing at least 15 metres (50 ft) away
  • from module.
