AIRBAG DIAGNOSTIC CONTROL UNIT -

Airbag diagnostic control unit -

DISTRIBUTED SRS

Service repair no - 76.74.03

Remove

  1. Disconnect battery negative lead.
  2. Remove centre console assembly. See CHASSIS AND BODY, Repair.

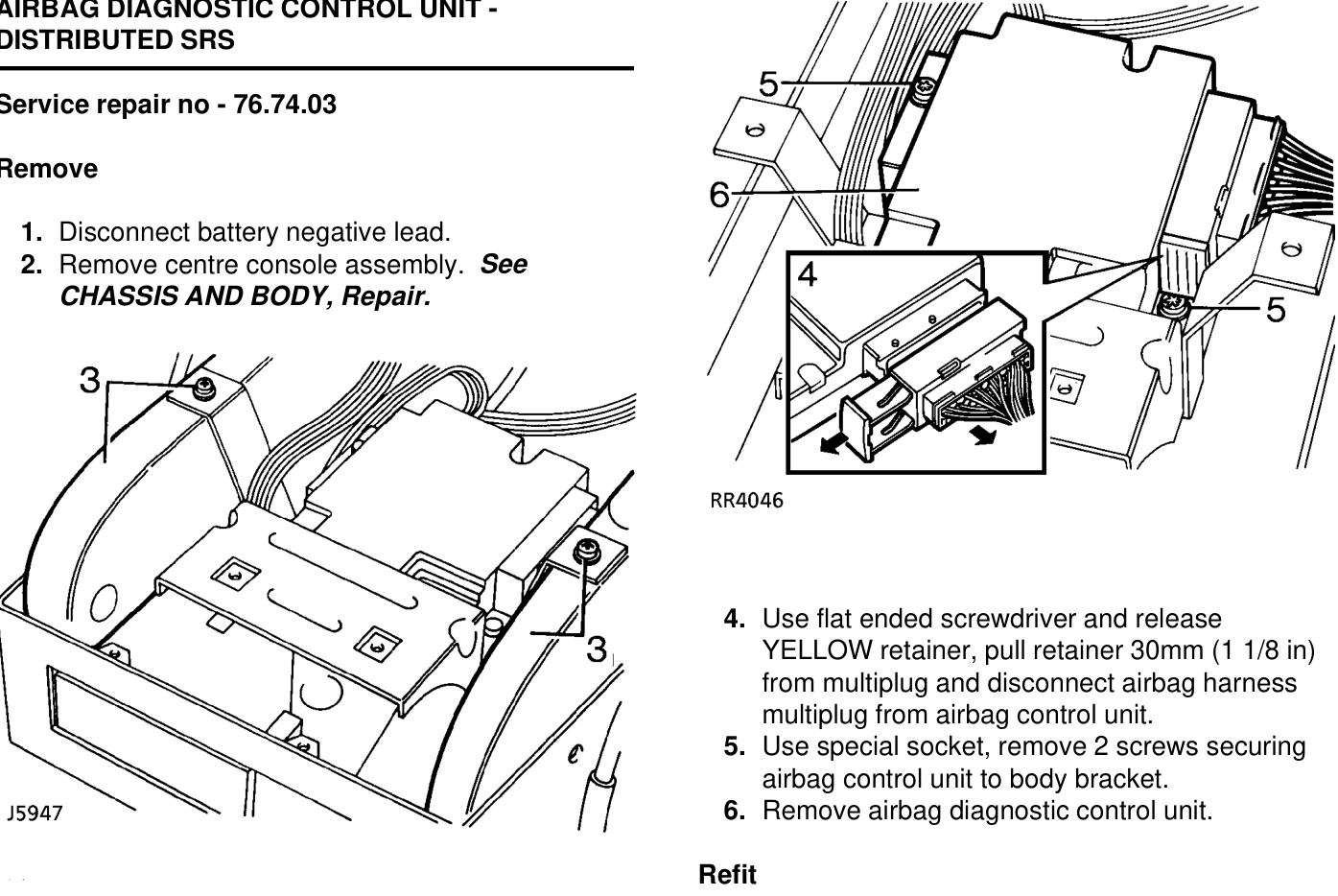

  3. Use flat ended screwdriver and release YELLOW retainer, pull retainer 30mm (1 1/8 in) from multiplug and disconnect airbag harness multiplug from airbag control unit.
  4. Use special socket, remove 2 screws securing airbag control unit to body bracket.
  5. Remove airbag diagnostic control unit.

Refit

  1. Remove 4 screws and release the 2 rear passenger air ducts from their fitted position and remove centre console mounting bracket.
  2. Reverse removal procedure.
  3. Tighten control unit securing screws to 10Nm (7 lbf ft).
  4. Check Supplementary Restraint System using Testbook.
