Steering wheel

STEERING WHEEL

Service repair no - 57.60.01

Remove

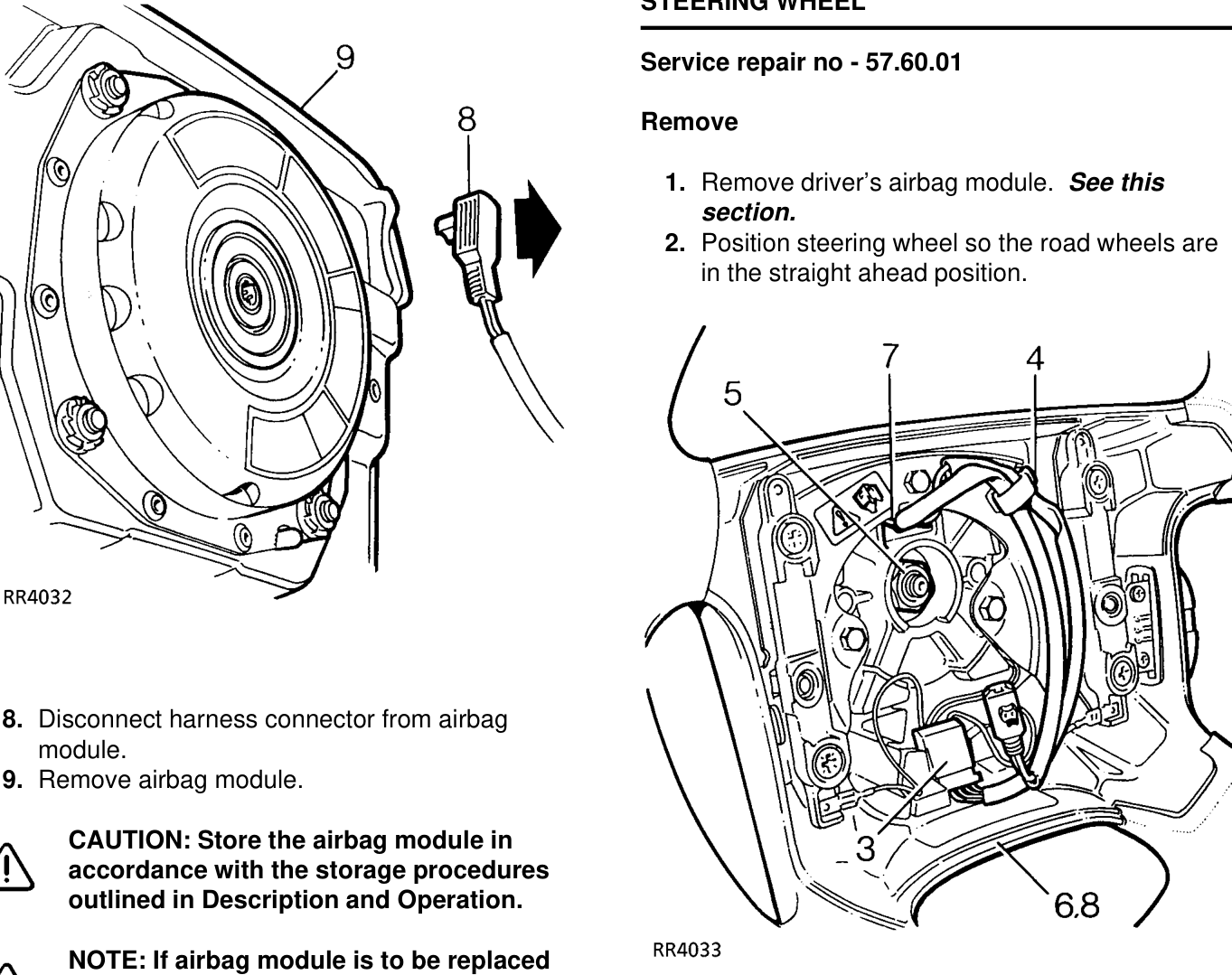

1. Remove driver’s airbag module. See this section.
2. Position steering wheel so the road wheels are in the straight ahead position.
8. Disconnect harness connector from airbag module.
9. Remove airbag module.

• CAUTION: Store the airbag module in
• accordance with the storage procedures
• outlined in Description and Operation.

• NOTE: If airbag module is to be replaced
• the serial numbers must be recorded in
• the vehicle service record.

Refit

10. Reverse removal procedure.
11. Connect harness connector to airbag module with harness downwards (as shown at 8).
12. Position airbag module on steering wheel and engage retained screws. Use special socket to tighten screws to 8Nm (6 lbf ft).

CAUTION: Take care not to cross thread screws.

13. Check Supplementary Restraint System using Testbook .
3. Disconnect cruise control switch connector (where fitted) from rotary coupler harness.
4. Release harnesses from clip on steering wheel.
5. Remove steering wheel nut.
6. Release steering wheel from column.
7. Feed harnesses through hole in steering wheel.
8. Remove steering wheel.

• CAUTION: Prevent rotation of rotary
• coupler once steering wheel is removed.
• Secure in position with adhesive tape.
