System precautions driver’s airbag module (page 2 of 2)
- Make
- Land Rover
- Model
- Discovery Body Repair Manual
- Year
- 1995 on
- Section
- Repair
Supplementary restraint systemSystem precautions driver’s airbag module · page 2 of 2

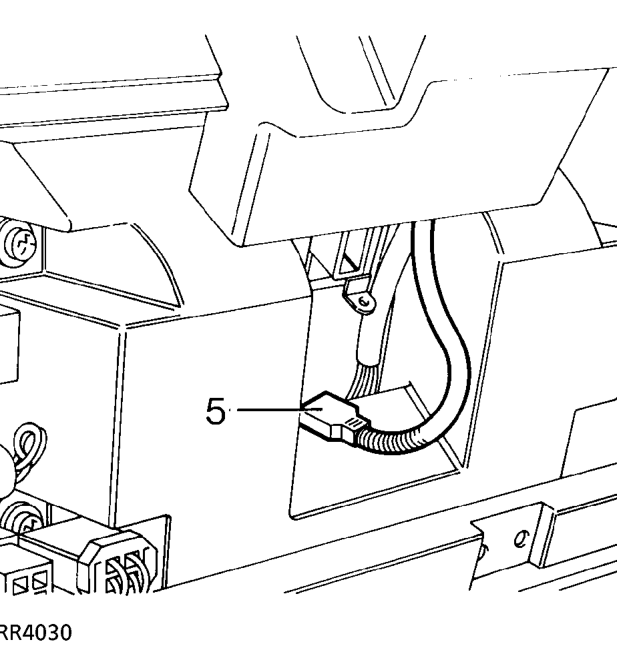

- Disconnect airbag harness connector from yellow airbag column harness.

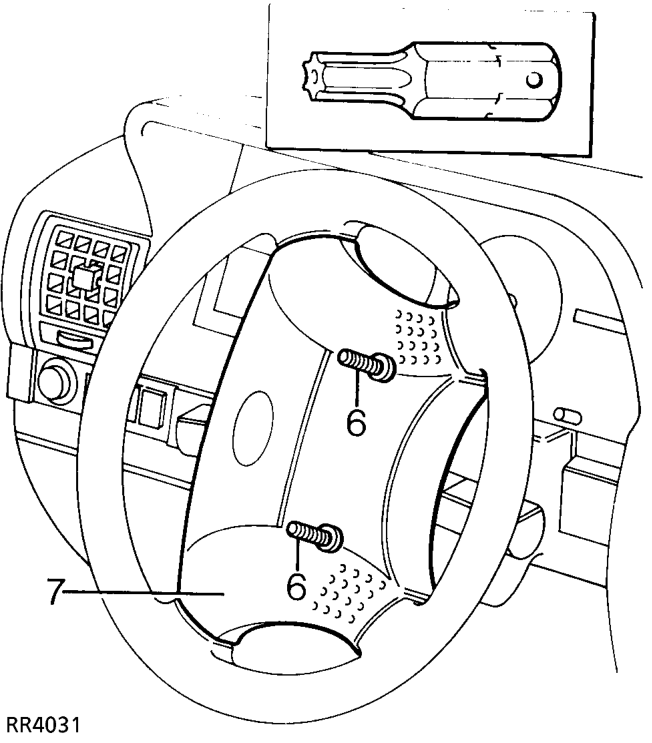

- Use special socket, unscrew 2 tamper-proof Resistorx screws securing airbag module to steering wheel.
- Release airbag module from steering wheel.
CAUTION: Do not allow the airbag module to hang by the airbag harness.
