AIRBAG DIAGNOSTIC CONTROL UNIT - SPS SRS

Airbag diagnostic control unit - sps srs

Service repair no - 76.74.03

Remove

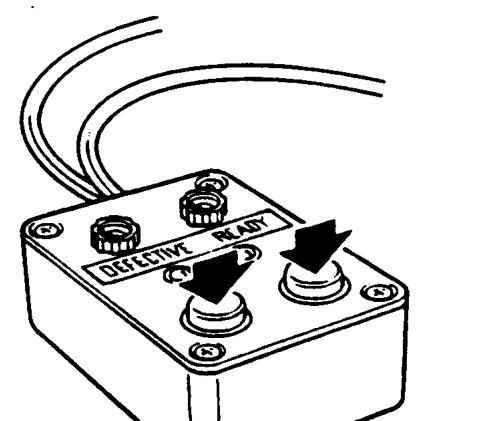

  1. Press both operating buttons to deploy airbag module.
  2. DO NOT return to airbag module for 30 minutes.
  3. Using gloves and face mask, remove airbag module from tool, place airbag module in plastic bag and seal bag.
  4. Wipe down tool with damp cloth.
  5. Transport deployed airbag module to designated area for incineration.

Refit

  • NOTE: DO NOT transport airbag module in
  • the vehicle passenger compartment. DO
  • NOT re-use or salvage any parts of the
  • airbag system.

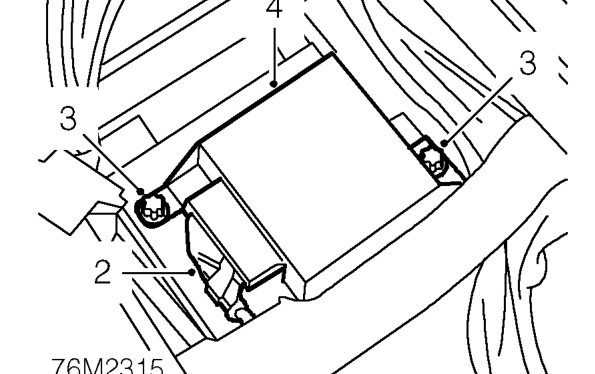

  1. Remove centre console. See CHASSIS AND BODY, Repair.
Airbag diagnostic control unit - sps srs – Remove centre console. See CHASSIS AND BODY, Repair.
  1. Disconnect connector from control unit.
  2. Remove 2 Torx bolts securing control unit to body.
  3. Remove control unit.
  4. Position control unit to body, fit Torx bolts and tighten to 10 Nm (7 lbf ft)

.

  1. Connect control unit connector and secure.
  2. Fit centre console. See CHASSIS AND BODY, Repair.
  3. Check supplementary restraint system using TestBook.
