Airbag manual deployment

AIRBAG MANUAL DEPLOYMENT

• CAUTION: Deployment in the vehicle will
• damage the steering wheel; if the vehicle
• is not being scrapped deploy the module
• away from the vehicle in accordance with the

separate procedure. 10. Self test now complete.

If a vehicle is to be scrapped and contains an Deployment with module fitted to vehicle undeployed airbag module, the module must be manually deployed. This operation should only be These guidelines are written to aid authorised carried out using the following recommended manual personnel to carry out the safe disposal of the airbag deployment procedure. module when fitted to the vehicle.

Before deployment is started the deployment tool self test procedure should be carried out.

Deployment tool SMD 4082/1 self test procedure designated area. Ensure airbag module is not damaged or ruptured before deploying.

5. GREEN "DEFECTIVE" light should illuminate.
6. Release both operating buttons.
7. RED "READY" light should illuminate.
8. Disconnect tool from battery.
9. Disconnect blue and yellow connectors from tool face sockets.

• WARNING: Only use the LAND ROVER
• approved deployment equipment. Deploy
• airbag module in a well ventilated

1. Carry out deployment tool self test.
2. Release 2 turnbuckles securing lower panel to

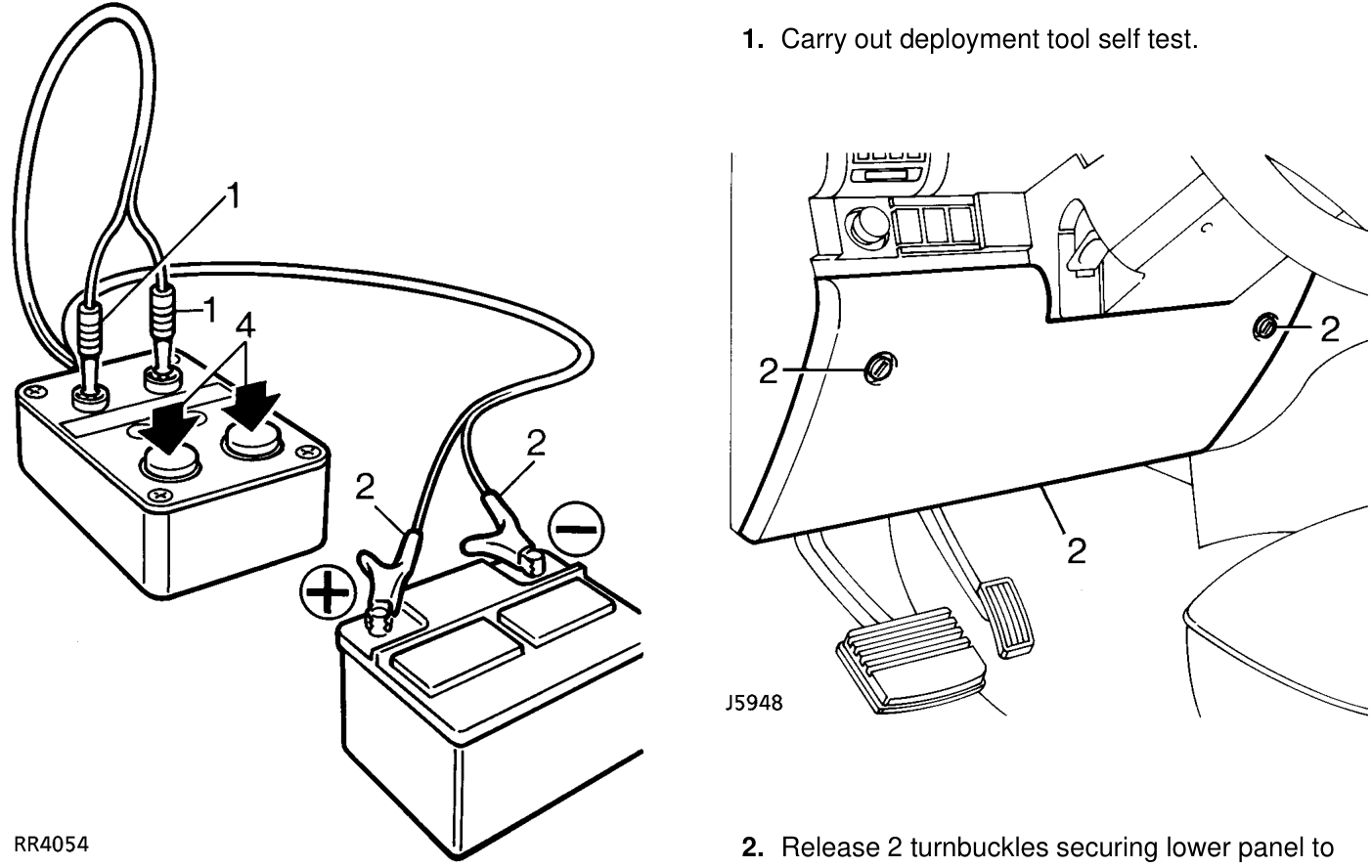

1. Insert BLUE and YELLOW connectors of tool lead into corresponding sockets on face of tool.
2. Connect crocodile clips of second tool lead to battery, RED to positive and BLACK to negative.
3. RED "READY" light should illuminate.
4. Press and hold both operating buttons.

dash, remove lower panel.
