Passenger’s Airbag Module

Make
Land Rover
Model
Discovery Body Repair Manual
Year
1995 on
Section
Repair › Passenger’s Airbag Module
Supplementary restraint systemPassenger’s Airbag Module
Diagram

Passenger’s Airbag Module

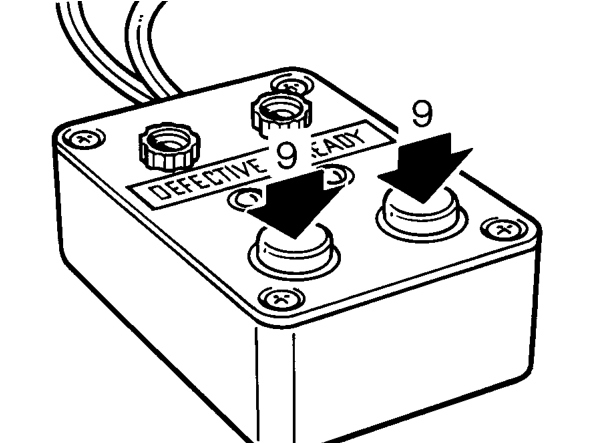

  1. Press both operating buttons to deploy airbag module.
  2. DO NOT return to airbag module for 30 minutes.
  3. Using gloves and face mask, remove airbag module from tool, place airbag module in plastic bag and seal bag.
  4. Wipe down tool with damp cloth.
  5. Transport deployed airbag module to designated area for incineration.
  • NOTE: DO NOT transport airbag module in
  • the vehicle passenger compartment. DO
  • NOT re-use or salvage any parts of the
  • airbag system including steering wheel or
  • steering column.
  1. Carry out deployment tool self test.
  2. Remove airbag module from fascia. See this section.

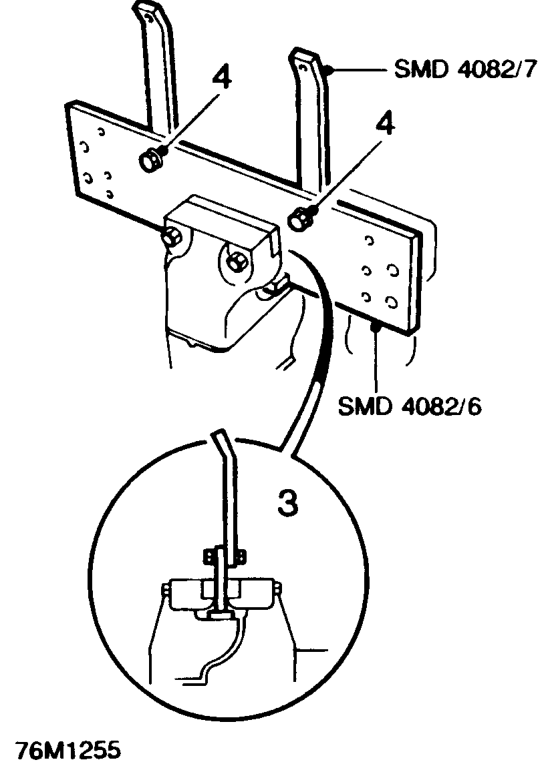

Passenger’s airbag module – Remove airbag module from fascia. See this section.
  1. Position tool SMD 4082/6 in vice, ensuring that vice jaws grip tool above bottom flange to prevent possibility of tool being forced upwards from vice. Tighten vice.
  2. Position brackets SMD 4082/7 to tool; lightly tighten bolts.
