SRS WARNING LIGHT BULBS

Service repair no - 76.73.74

Remove

  1. Remove instrument binnacle. See ELECTRICAL, Repair.

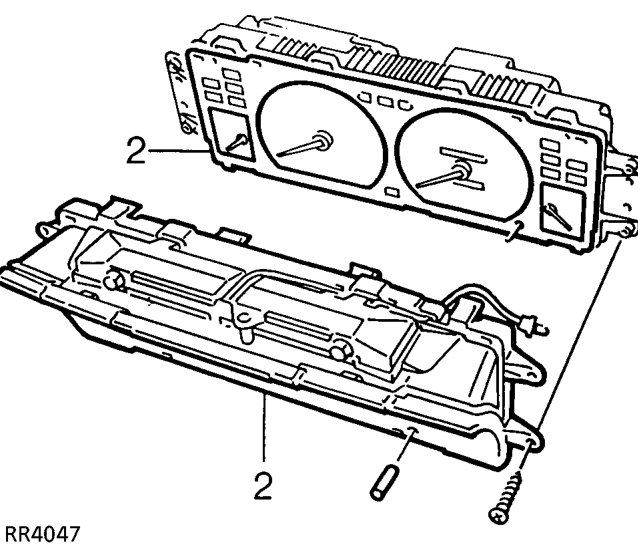

Srs warning light bulbs – Remove instrument binnacle. See ELECTRICAL, Repair.
  1. Remove window and face plate from instrument panel.

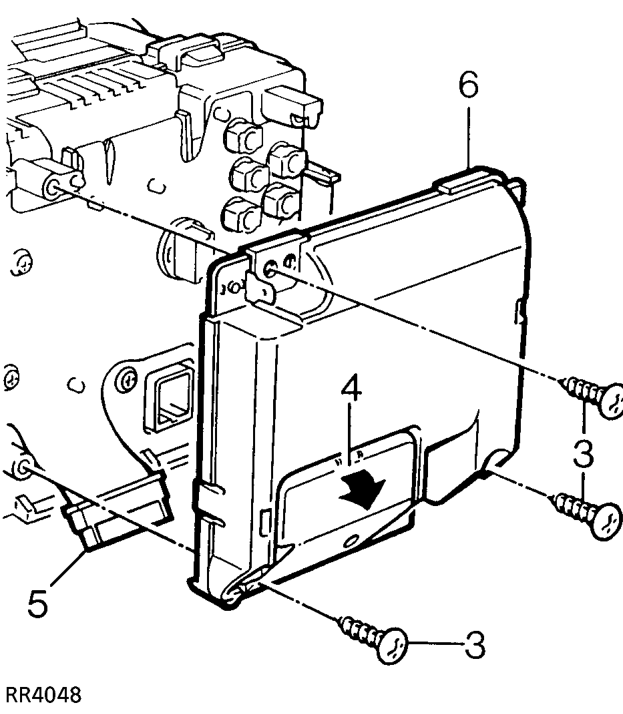

Srs warning light bulbs – Remove window and face plate from instrument panel.
  1. Remove 3 screws securing ECU to instrument panel.
  2. Release and remove small cover from ECU.
  3. Disconnect multiplug from ECU.
  4. Remove ECU

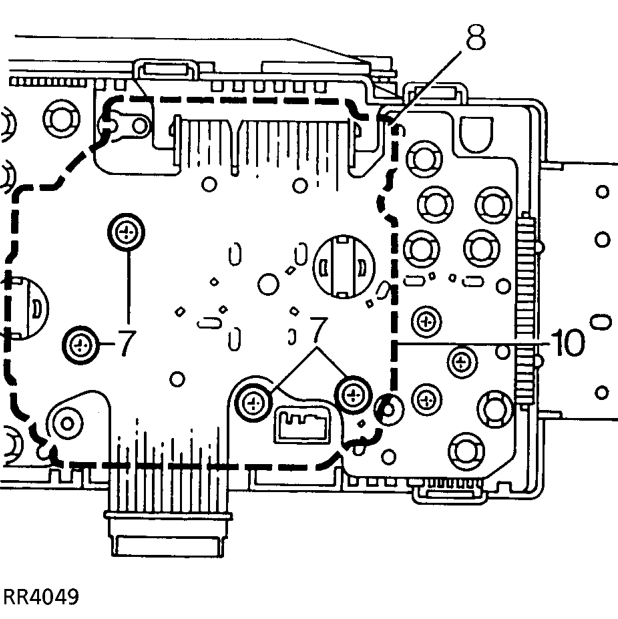

Srs warning light bulbs – Remove ECU
  1. Remove 4 screws securing tachometer.
  2. Remove tachometer.
