Supplementary restraint systemRotary coupler centralise column switch assembly · page 2 of 2
Diagram

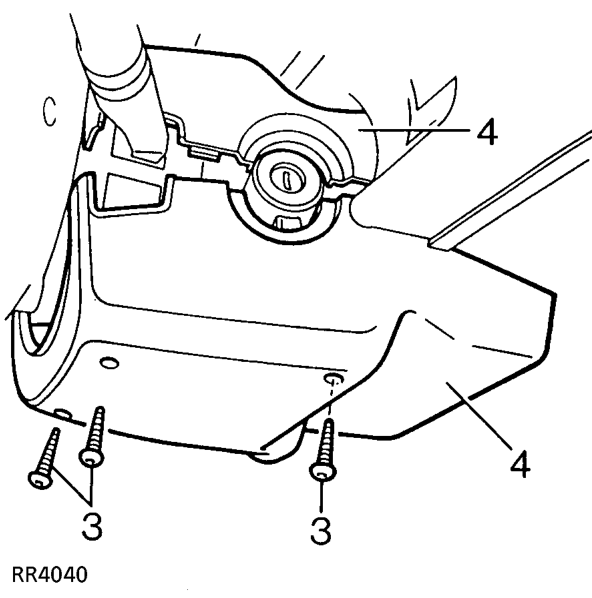

  1. Remove 3 screws securing lower half of nacelle to steering column.
  2. Separate the halves of the nacelle and remove from steering column.
Separate the halves of the nacelle and remove from steering column.

Refit

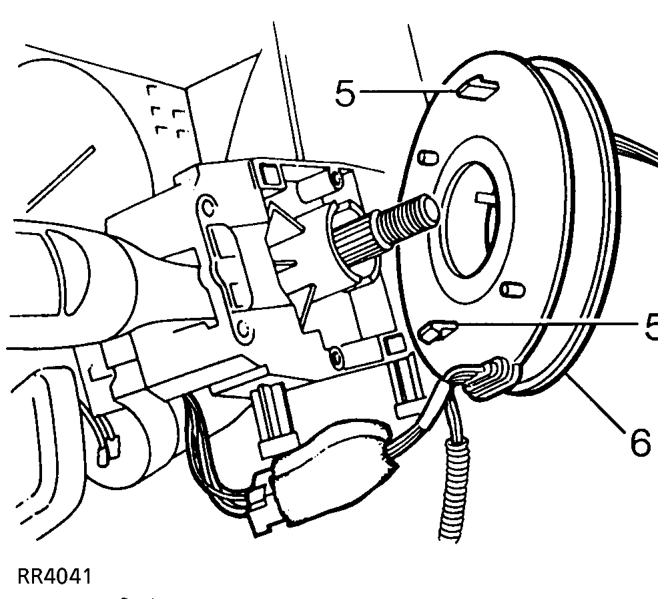

  1. Release 2 clips securing rotary coupler to column switch assembly.
  2. Release rotary coupler.

CAUTION: Do not allow rotary coupler to hang on its harness.

CAUTION: Do not allow rotary coupler to hang on its harness.

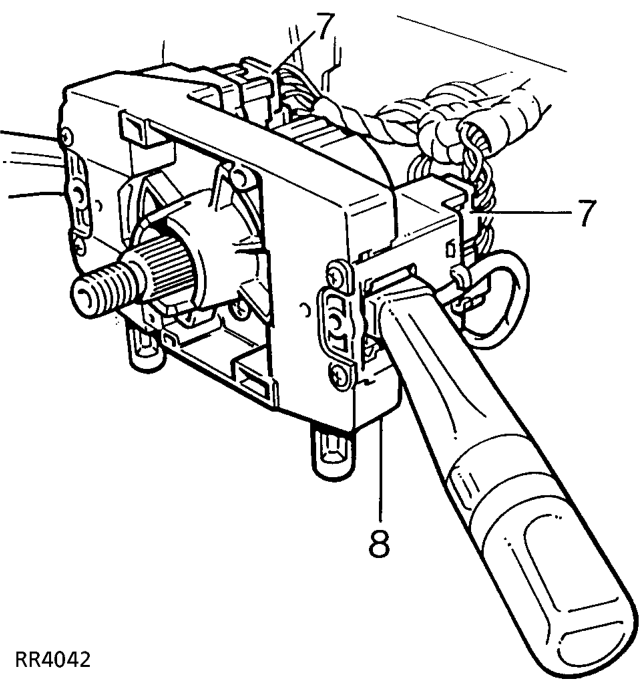

  1. Disconnect 4 connectors from column switch assembly.
  2. Remove column switch assembly from steering column.
  3. Reverse removal procedure.
