Supplementary restraint system (Airbag storage): Description and operation

AIRBAG STORAGE

Temporary storage

For temporary storage of the airbag module during service, observe the following precautions:

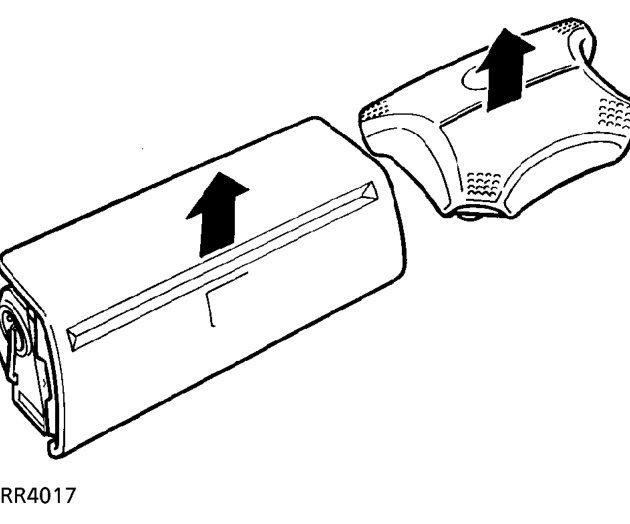

Store the airbag module with the pad surface up. Place the airbag module in designated storage area. If no designated storage area is available, the module may be stored in the boot of the vehicle from which it was removed. Always lock the boot when module is stored in it and inform workshop supervisor.

• WARNING: If the airbag is improperly
• stored face down, accidental deployment
• could propel the unit with enough force to
• cause serious injury.

Store the removed airbag module on a secure flat surface away from heat, oil, grease, detergent or water.

CAUTION: Improper handling or storage can internally damage the airbag module, making it inoperative. If you suspect the airbag module has been damaged, install a new unit.

Overnight storage

Airbag modules are classed as an explosive article and as such they must be stored in a secure steel cabinet which has been approved by the local authority.
