SRS warning light (airbag) (Supplementary restraint system)
- Make
- Land Rover
- Model
- Discovery Body Repair Manual
- Year
- 1995 on
- Section
- Description and operation › SRS warning light (airbag)
SRS warning light (airbag)
Distributed SRS

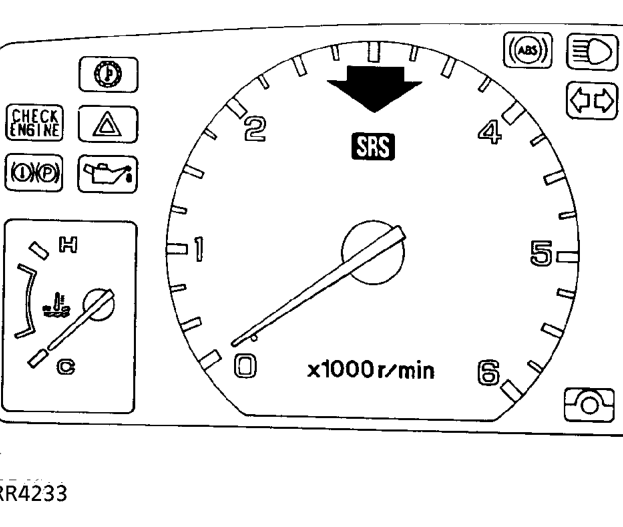

The warning light in the instrument pack illuminates after the electrical circuits are switched on whilst a system check is carried out. After about 8 seconds the warning light will go out. The system checks airbag diagnostic control unit, airbag crash sensors, airbag harness, driver and passenger modules.
SPS SRS
The warning light in the instrument pack illuminates after the electrical circuits are switched on whilst a system check is carried out. After about 5 seconds the warning light will go out. The system checks airbag diagnostic control unit, airbag harness, driver and passenger modules.
All Models
In the event of a fault in the system the warning light will illuminate. The airbag diagnostic control unit logs the fault which can only be accessed using TestBook.
