Electronic control units

ELECTRONIC CONTROL UNITS

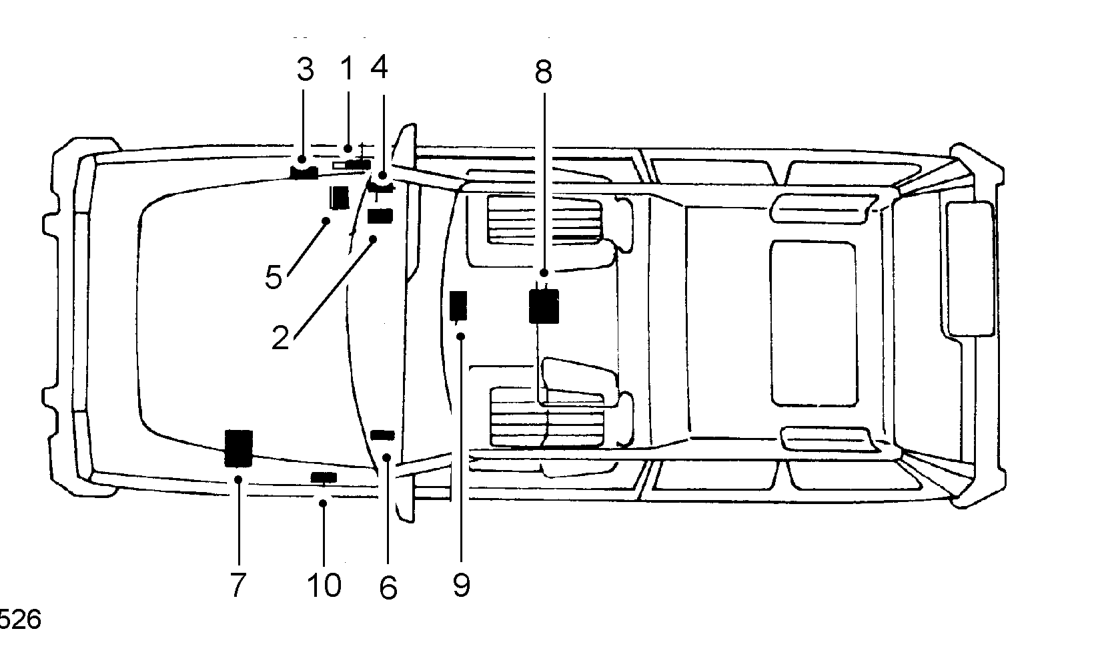

1. Engine control module (ECM) - MFi version (behind RH footwell panel) 2. Cruise control ECU (behind lower dash panel) 3. MEMS ECU - MPi version (on RH inner wing) 4. EGR EDC ECU - Diesel version (behind RH end of dashboard) 5. Glow plug ECU - Diesel version (on RH of 10. Anti-theft alarm ECU (inside LH footwell) bulkhead)

6. ABS ECU (behind LH of dashboard) 7. ABS modulator unit (on LH inner wing) 8. SRS diagnostic ECU (on centre tunnel beneath console) 9. Sunroof ECU (on screen rail above forward switches)

The electronic control units fitted to Land Rover vehicles make it advisable to follow suitable precautions prior to carrying out welding repair operations. Harsh conditions of heat and vibration may be generated during these operations which could cause damage to the units.

In particular, it is essential to follow the appropriate precautions when disconnecting or removing the SRS diagnostic unit. See SUPPLEMENTARY RESTRAINT SYSTEM, Description and operation
