Land Rover Discovery Body Repair Manual (1995 on)05 · Panel repairs
05 · General

Panel repairs (Welding): Procedures (page 2 of 2)

Make
Land Rover
Model
Discovery Body Repair Manual
Year
1995 on
Section
Procedures
Panel repairsWelding · page 2 of 2
Diagram

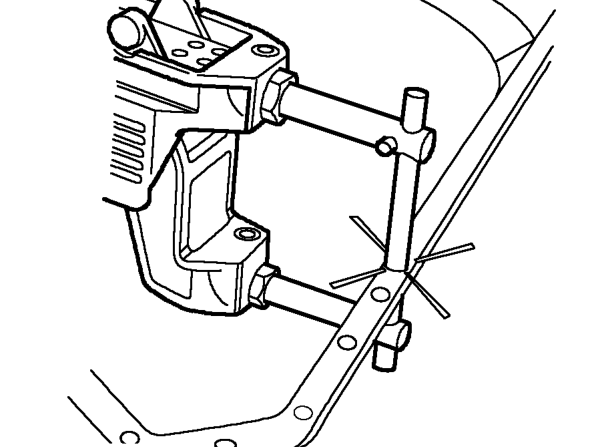

  1. Use a resistance spot welder where access 17. Dress MIG tack welds using a sander with 36 grit permits. Try to ensure weld quality by using a weld monitor where possible.
Use a resistance spot welder where access 17. Dress MIG tack welds using a sander with 36

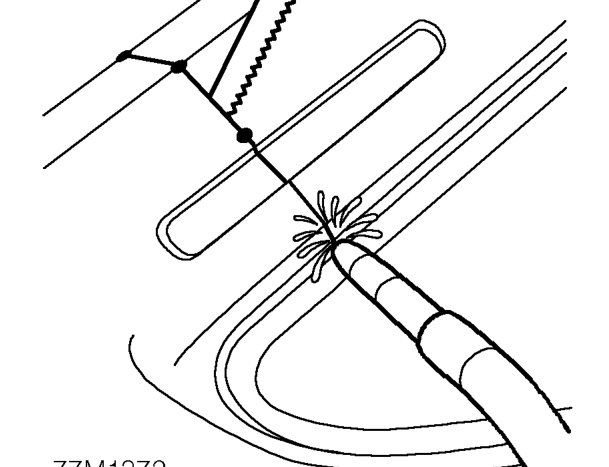

  1. MIG tack weld butt joints and re-check alignment and panel contours where necessary. Ensure that a gap is maintained to minimise welding distortion, by inserting a hacksaw blade as an approximate guide.
MIG tack weld butt joints and re-check alignment and panel contours where necessary. Ensur

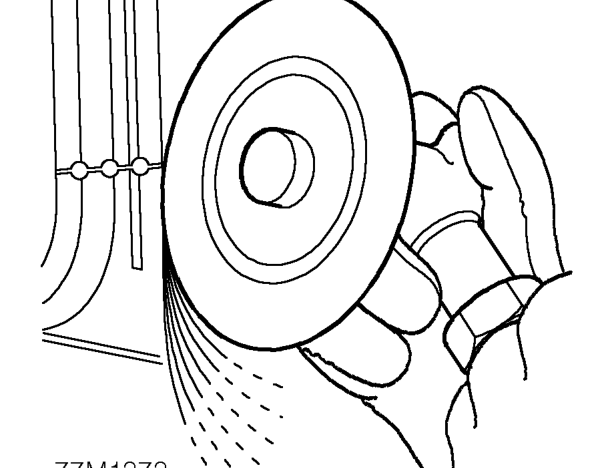

disc, or a belt-type sander where access is limited.
