Central locking (Japan) – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Central locking (Japan) – circuit diagram
Central locking (Japan)Central locking (Japan) – circuit diagram

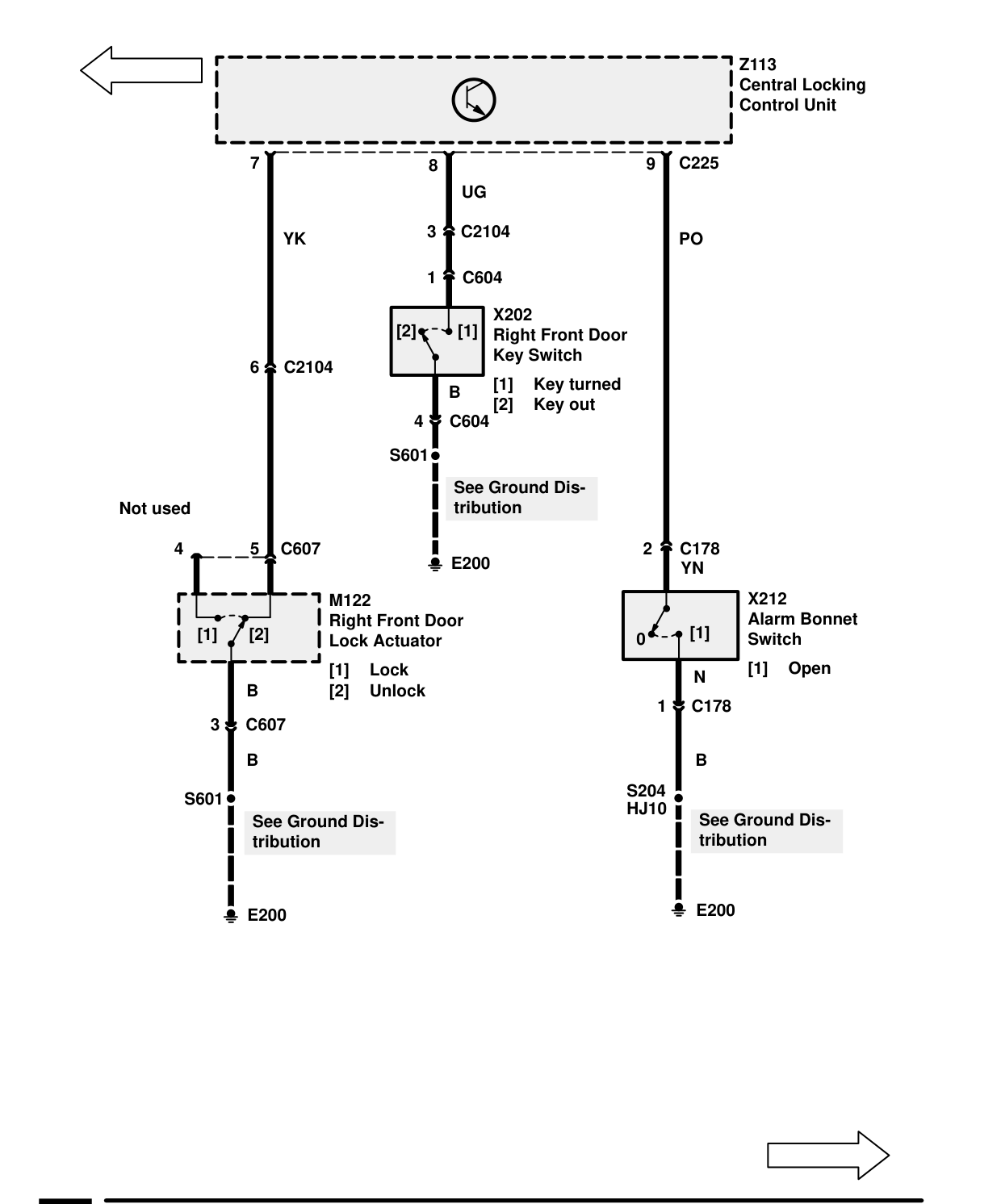

CENTRAL LOCKING (JAPAN) – CIRCUIT DIAGRAM
Components on this page
- M122 Right Front Door Lock Actuator
- X202 Right Front Door Key Switch
- X212 Alarm Bonnet Switch
- Z113 Central Locking Control Unit
