Cruise controlCruise control – circuit diagram

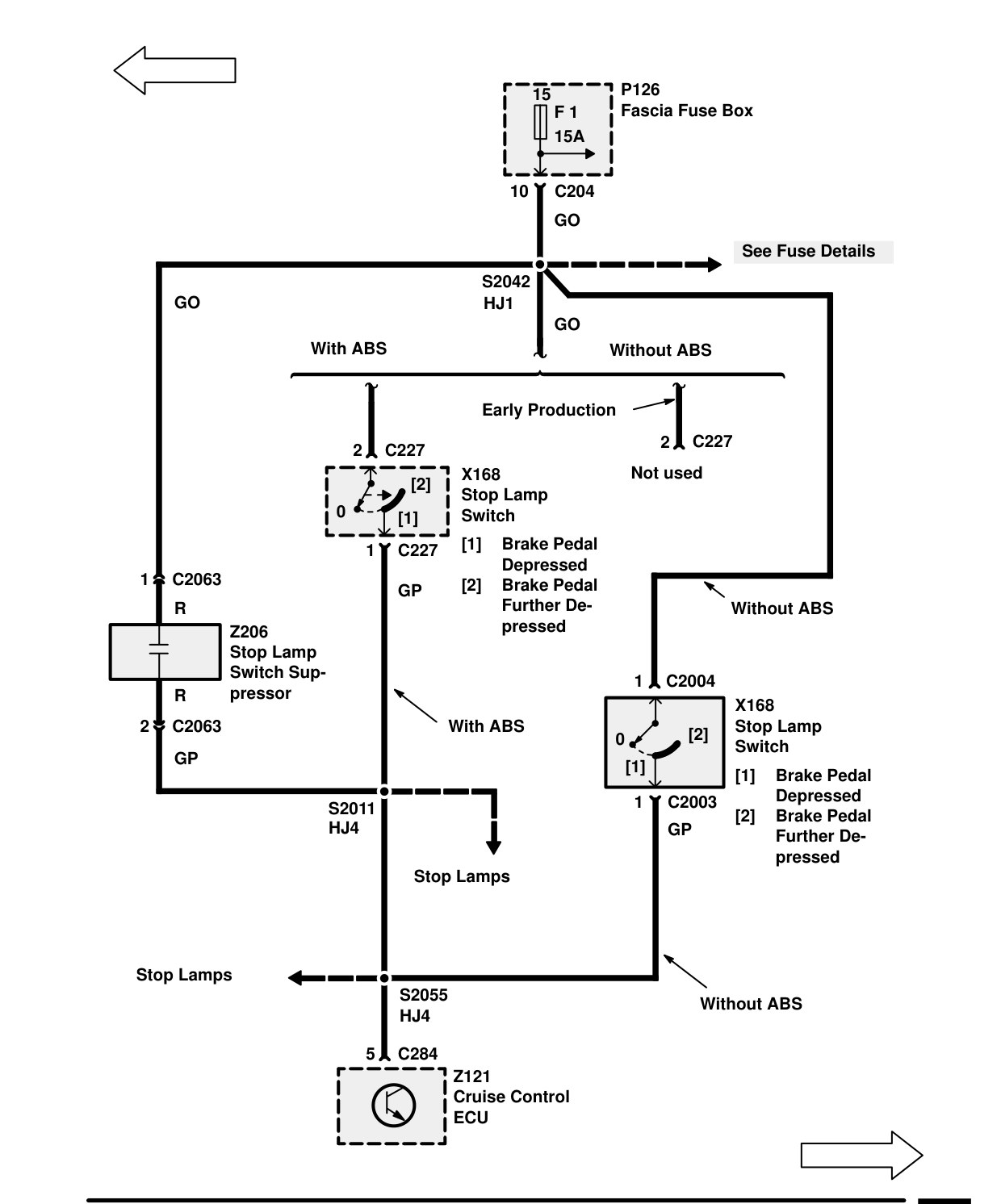

CRUISE CONTROL – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box
- X168 Stop Lamp Switch
- Z121 Cruise Control ECU
- Z206 Stop Lamp Switch Suppressor
