Fuse details – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Fuse details – circuit diagram
Fuse detailsFuse details – circuit diagram

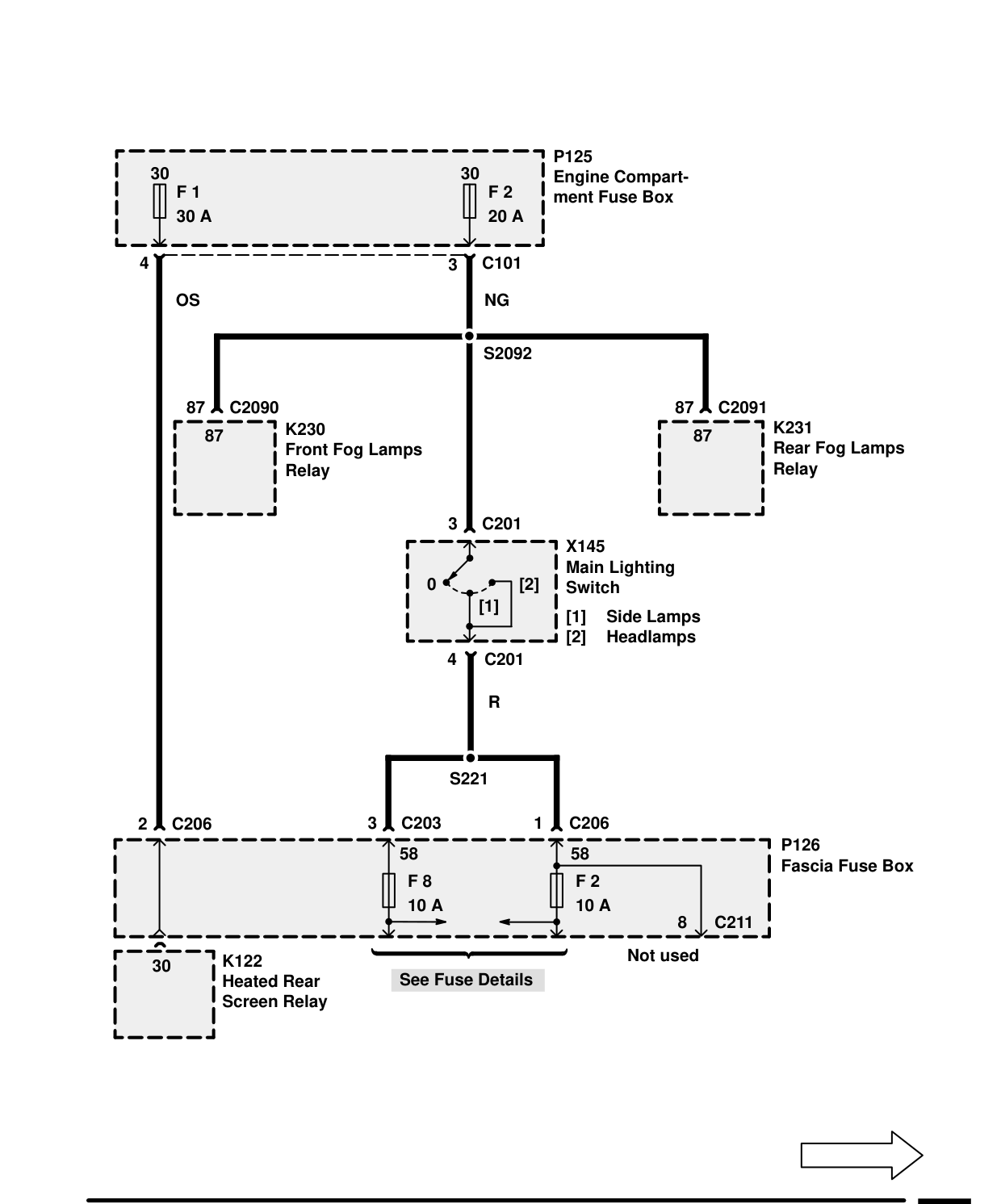

FUSE DETAILS – CIRCUIT DIAGRAM
Components on this page
- K122 Heated Rear Screen Relay
- K230 Front Fog Lamps Relay
- K231 Rear Fog Lamps Relay
- P125 Engine Compartment Fuse Box
- P126 Fascia Fuse Box
- X145 Main Lighting Switch
