Fuse detailsFuse details – circuit diagram

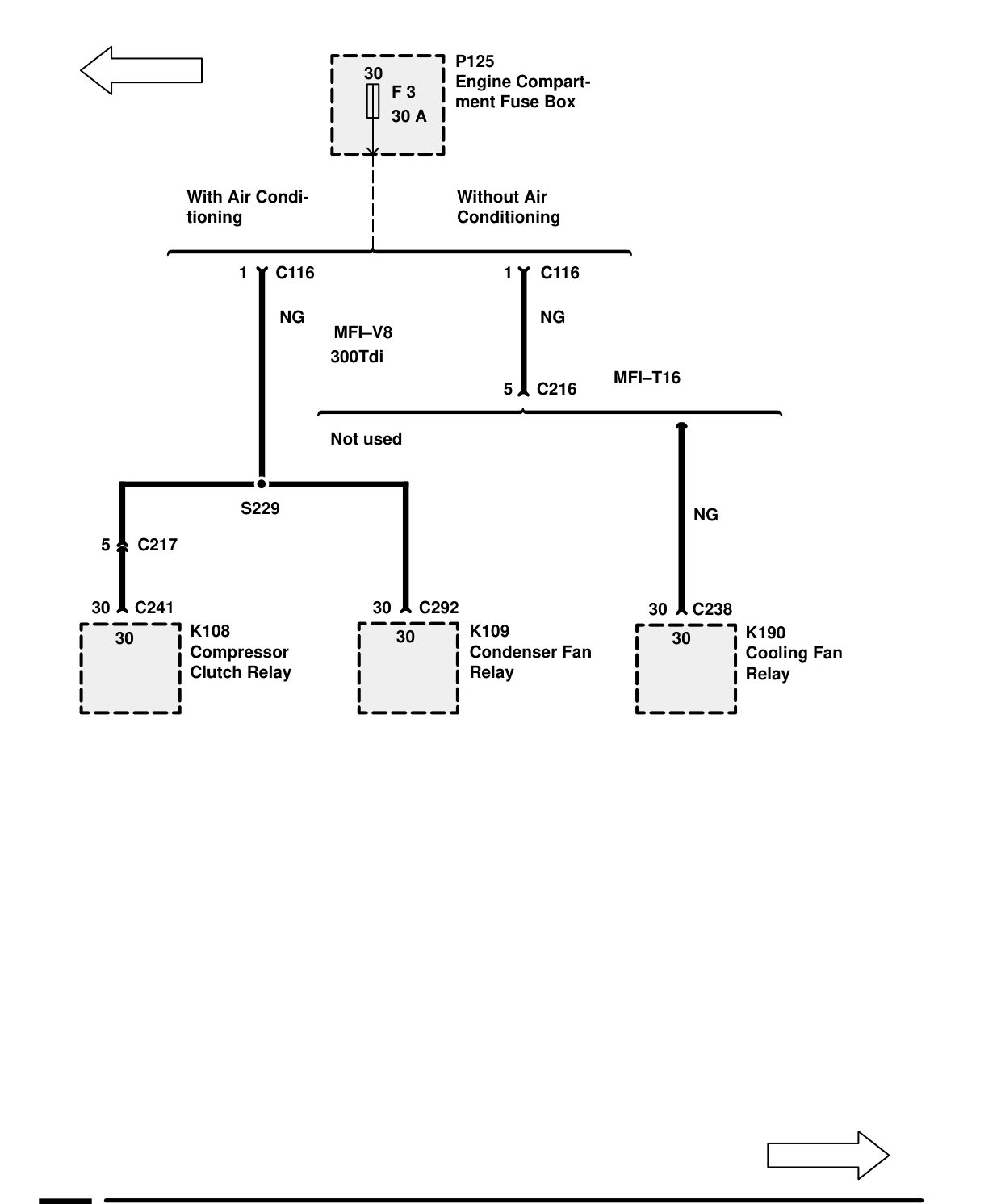

FUSE DETAILS – CIRCUIT DIAGRAM
Components on this page
- K108 Compressor Clutch Relay
- K109 Condenser Fan Relay
- K190 Cooling Fan Relay
- P125 Engine Compartment Fuse Box
