Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Ground distribution – circuit diagram
‹ Prev Ground distribution – circuit diagramNext › Ground distribution – ground distribution (except Japan)
Ground distributionGround distribution – circuit diagram

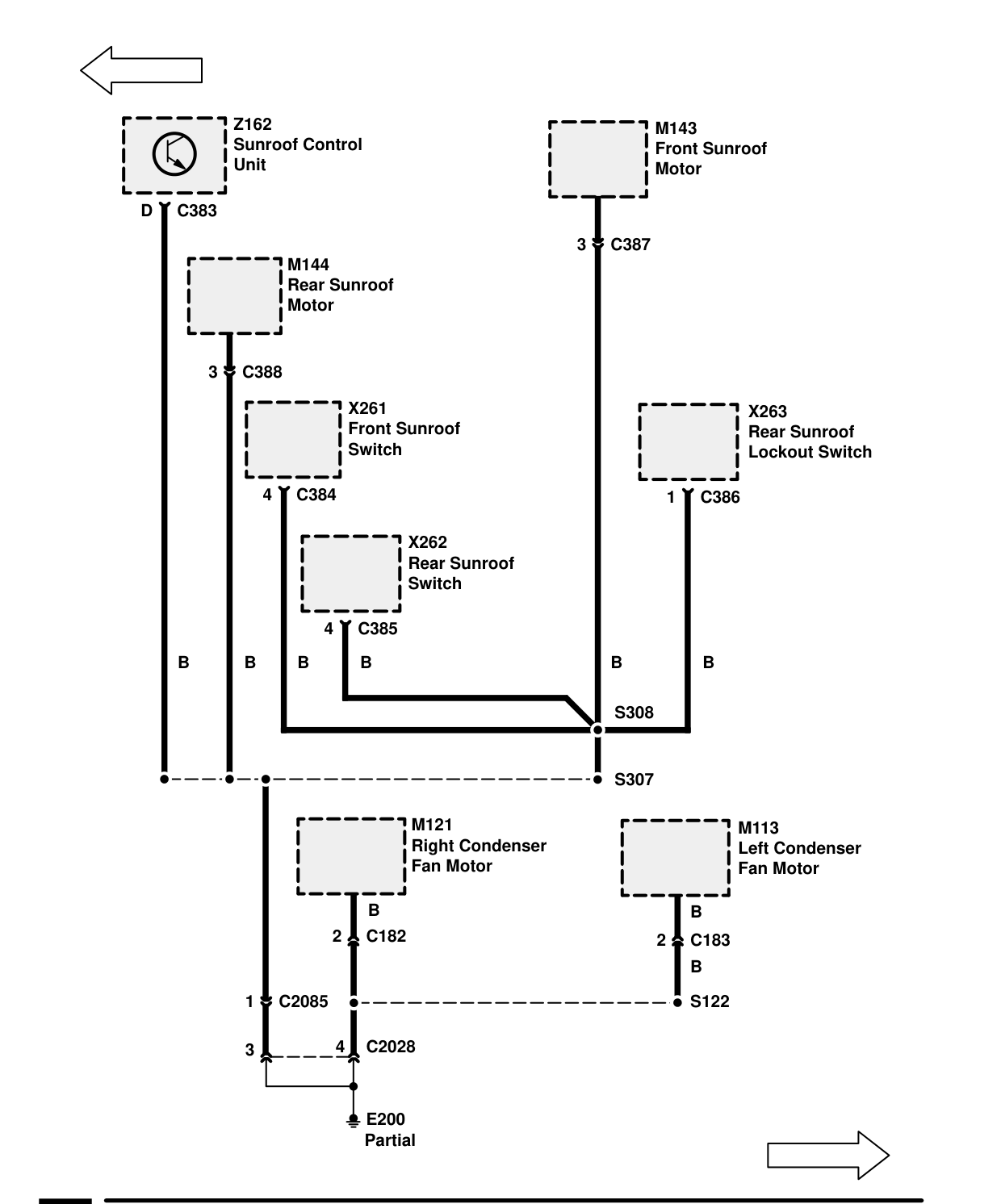

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- E200 Partial
- M113 Left Condenser Fan Motor
- M121 Right Condenser Fan Motor
- M143 Front Sunroof Motor
- M144 Rear Sunroof Motor
- X261 Front Sunroof Switch
- X262 Rear Sunroof Switch
- X263 Rear Sunroof Lockout Switch
- Z162 Sunroof Control Unit
