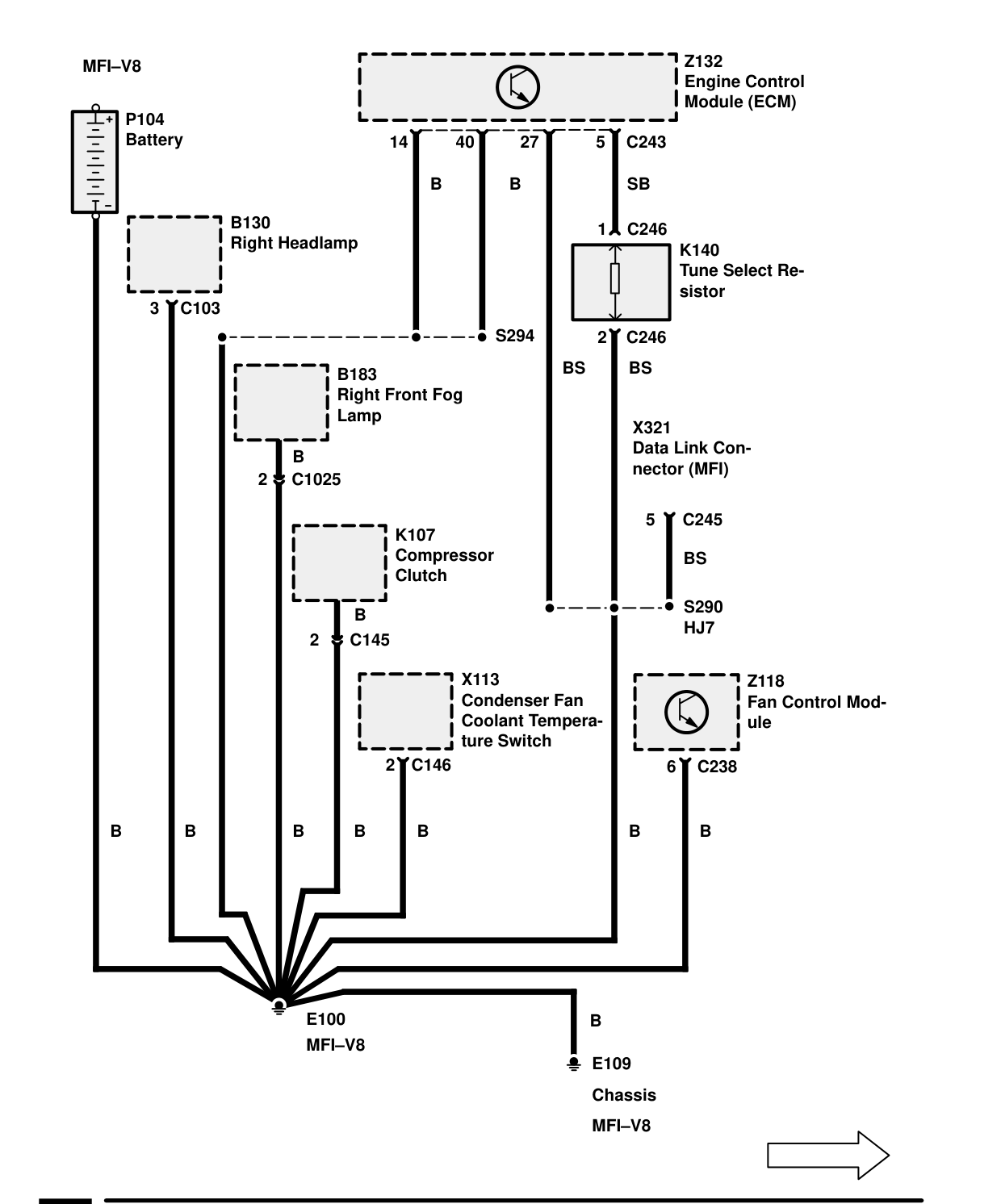

GROUND DISTRIBUTION – GROUND DISTRIBUTION (MFI-V8)

Components on this page

• B130 Right Headlamp
• B183 Right Front Fog Lamp
• K107 Compressor Clutch
• K140 Tune Select Resistor
• X113 Condenser Fan Coolant Temperature Switch
• X321 Data Link Connector (MFI)
• Z118 Fan Control Module
• Z132 Engine Control Module (ECM) P104 Battery

45 General
