Instruments – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Instruments – circuit diagram
InstrumentsInstruments – circuit diagram

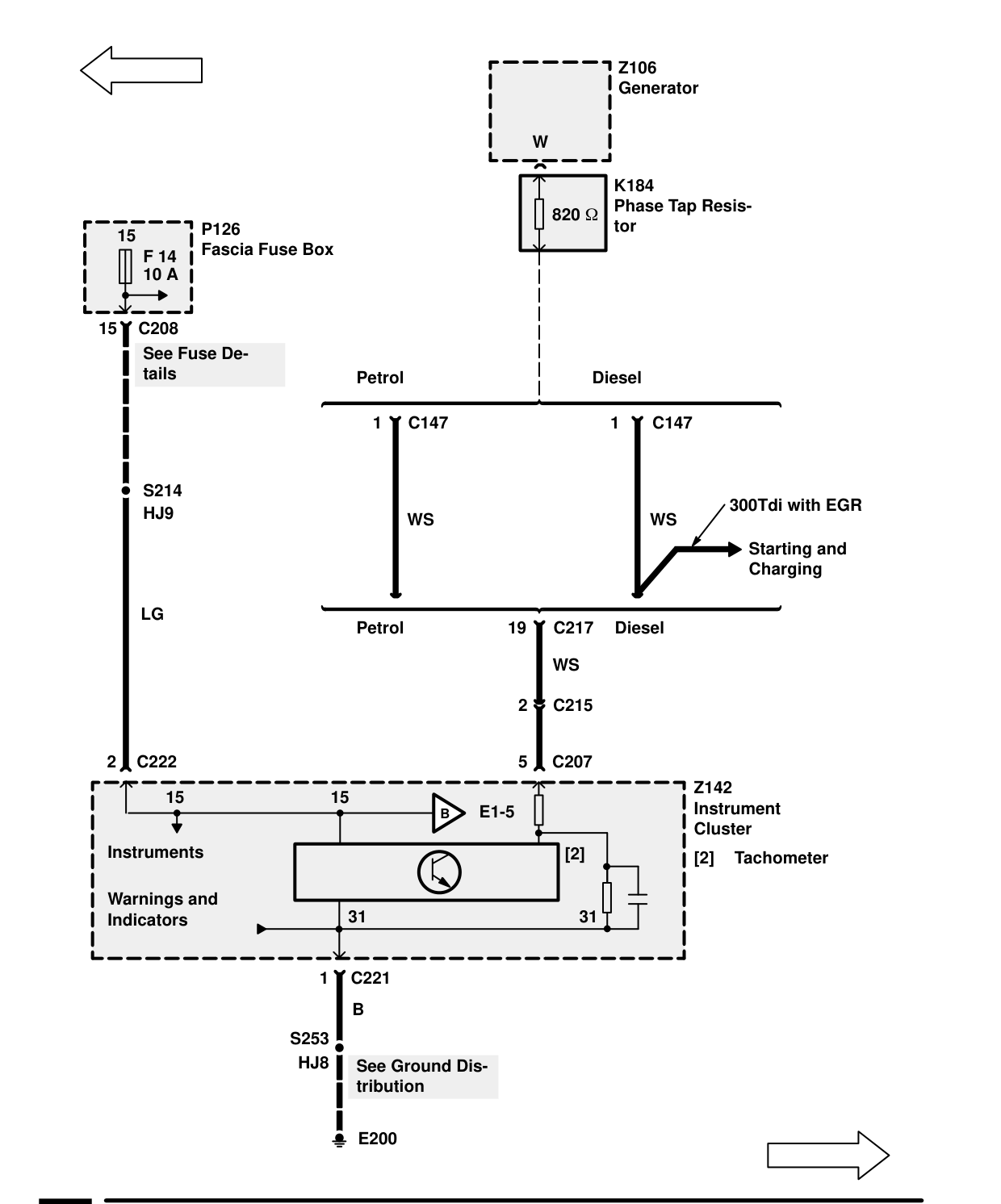

INSTRUMENTS – CIRCUIT DIAGRAM
Components on this page
- K184 Phase Tap Resistor
- P126 Fascia Fuse Box
- Z106 Generator
- Z142 Instrument Cluster
