Power windows – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Power windows – circuit diagram
Power windowsPower windows – circuit diagram

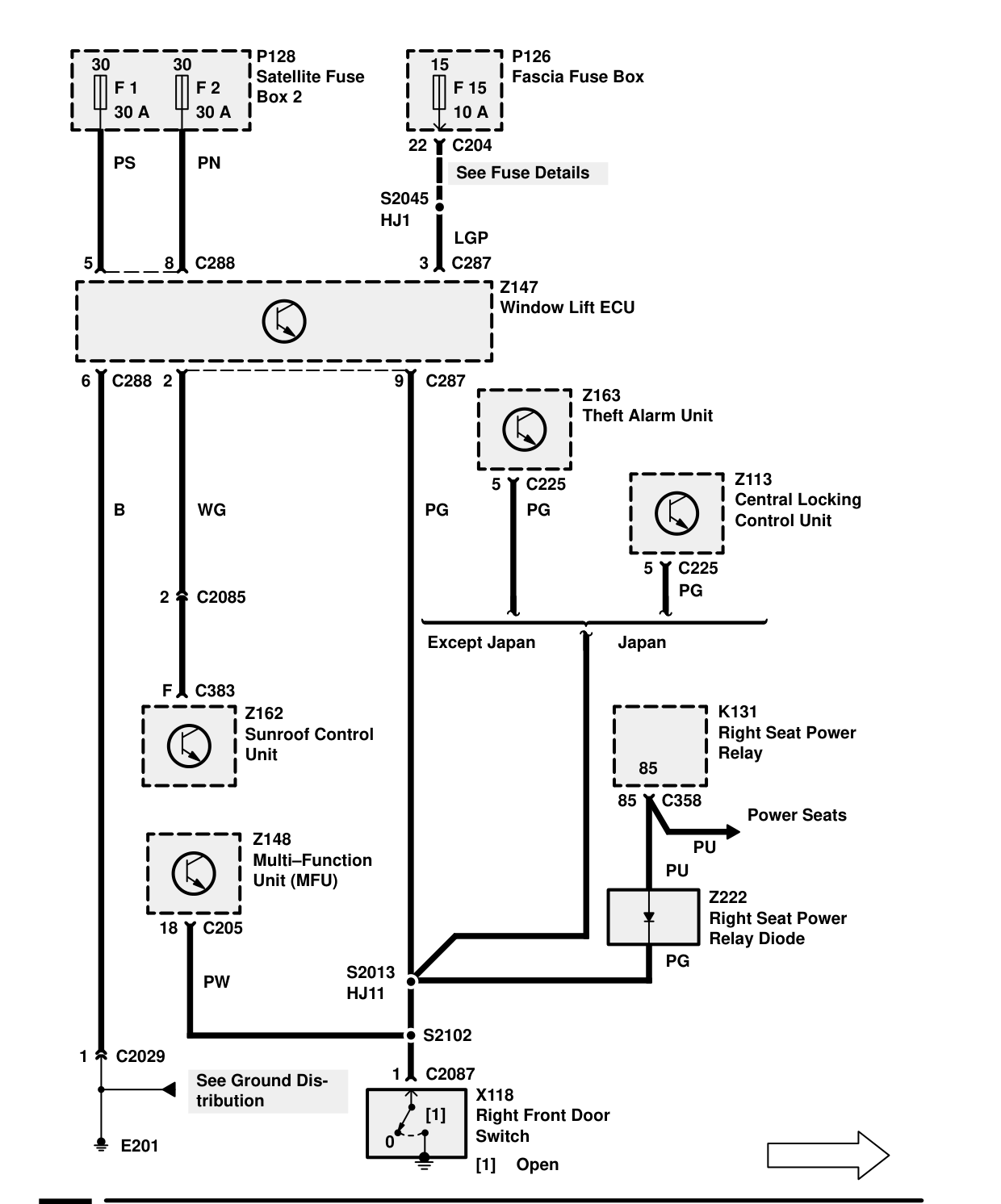

POWER WINDOWS – CIRCUIT DIAGRAM
Components on this page
- K131 Right Seat Power Relay
- P126 Fascia Fuse Box
- P128 Satellite Fuse Box 2
- X118 Right Front Door Switch
- Z113 Central Locking Control Unit
- Z147 Window Lift ECU
- Z148 Multi-Function Unit (MFU)
- Z162 Sunroof Control Unit
- Z163 Theft Alarm Unit
- Z222 Right Seat Power Relay Diode
