Power windows – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Power windows – circuit diagram
Power windowsPower windows – circuit diagram

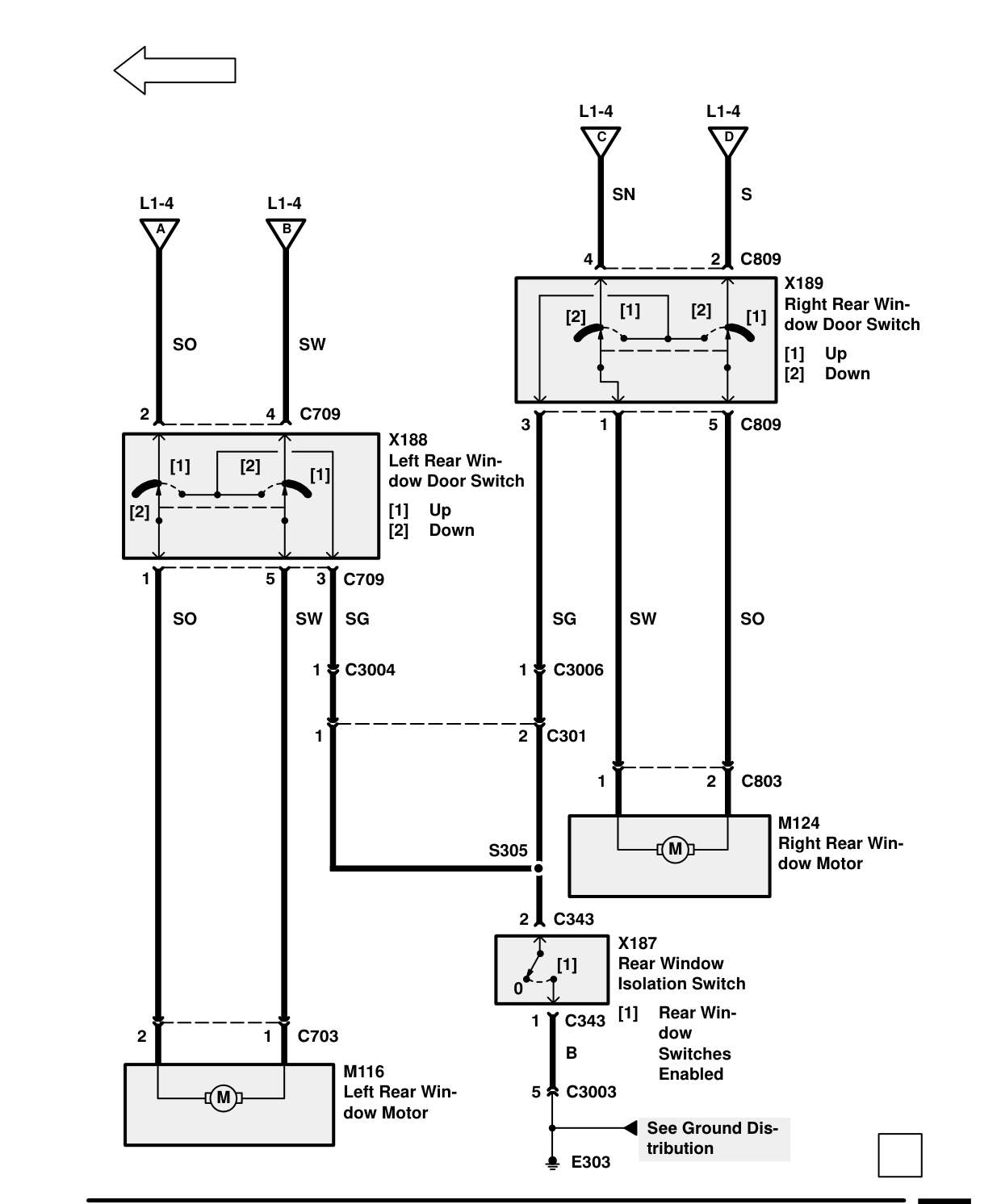

POWER WINDOWS – CIRCUIT DIAGRAM
Components on this page
- M116 Left Rear Window Motor
- M124 Right Rear Window Motor
- X187 Rear Window Isolation Switch
- X188 Left Rear Window Door Switch
- X189 Right Rear Window Door Switch
