Theft alarm systemTheft alarm system – circuit diagram

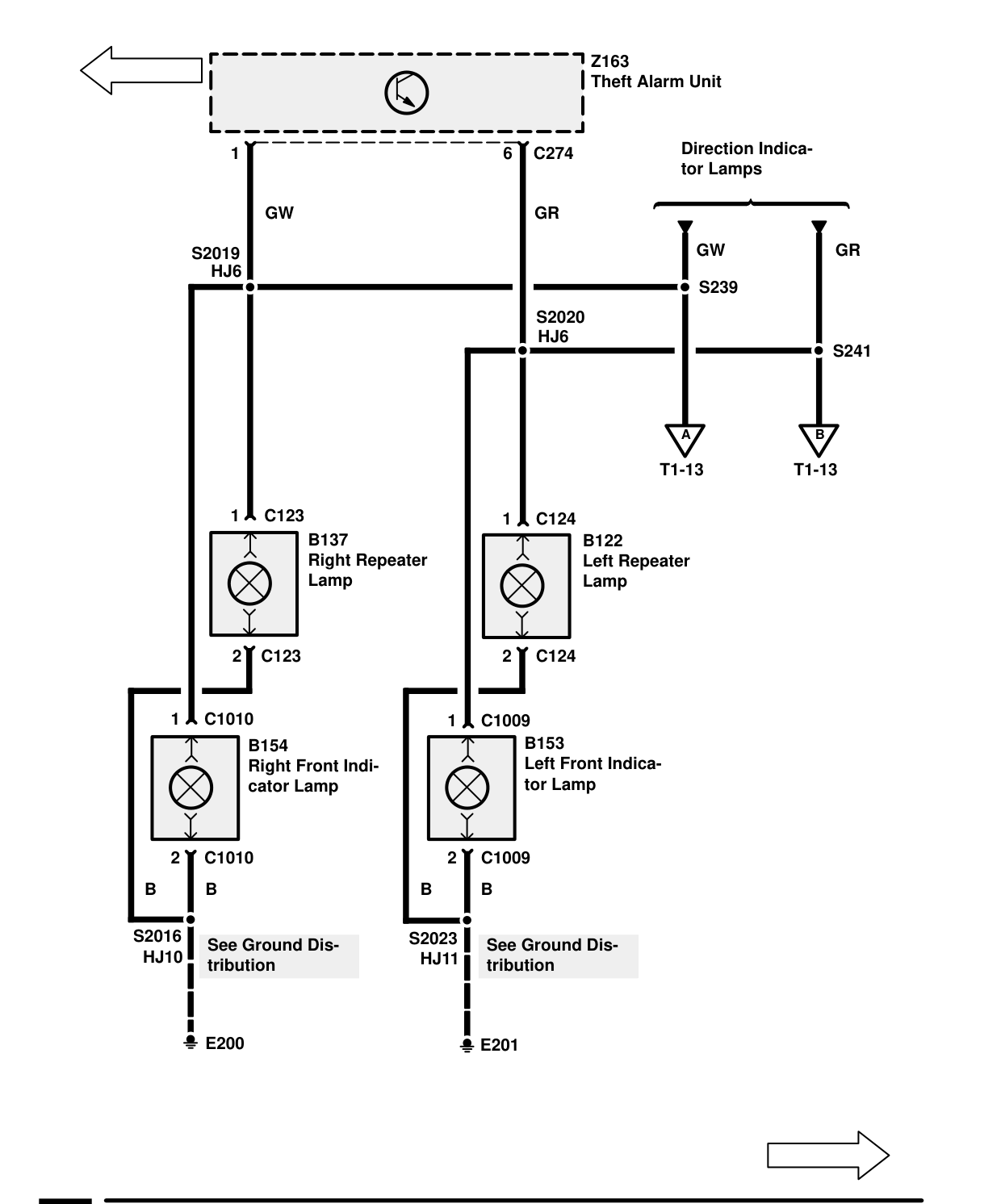

THEFT ALARM SYSTEM – CIRCUIT DIAGRAM
Components on this page
- B122 Left Repeater Lamp
- B137 Right Repeater Lamp
- B154 Right Front Indicator Lamp
- Z163 Theft Alarm Unit
