Trailer auxiliary socket – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Trailer auxiliary socket – circuit diagram
Trailer auxiliary socketTrailer auxiliary socket – circuit diagram

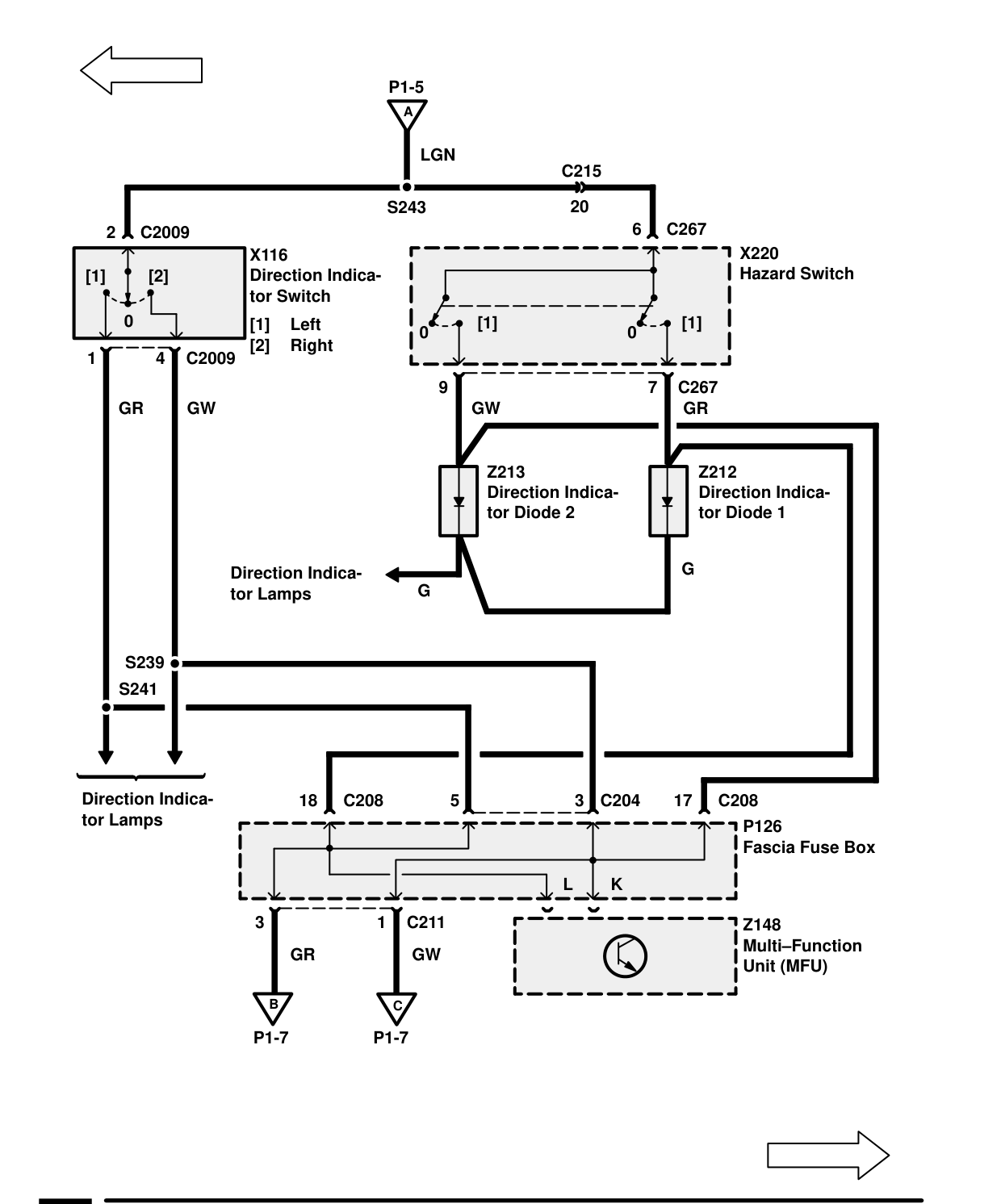

TRAILER AUXILIARY SOCKET – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box
- X116 Direction Indicator Switch
- X220 Hazard Switch
- Z148 Multi-Function Unit (MFU)
- Z212 Direction Indicator Diode 1
- Z213 Direction Indicator Diode 2
