Anti-lock brake system – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Anti-lock brake system – circuit diagram
Anti-lock brake systemAnti-lock brake system – circuit diagram

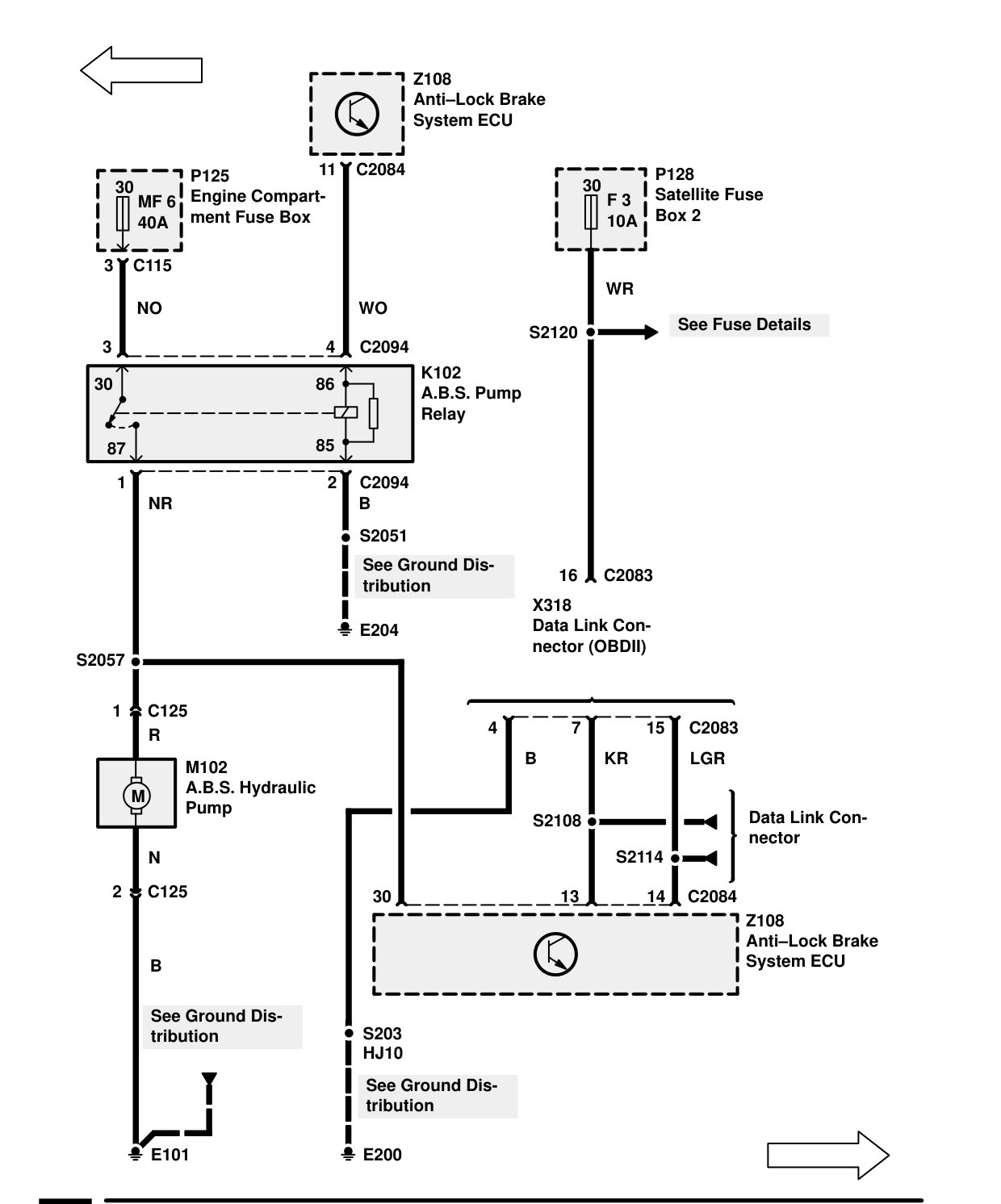

ANTI-LOCK BRAKE SYSTEM – CIRCUIT DIAGRAM
Components on this page
- K102 A.B.S. Pump Relay
- M102 A.B.S. Hydraulic Pump
- P125 Engine Compartment Fuse Box
- P128 Satellite Fuse Box 2 F 3
- X318 Data Link Connector (OBDII) E204
- Z108 Anti-Lock Brake System ECU
