Fog guard lamps – circuit diagram

Make

Land Rover

Model

Discovery Electrical Troubleshooting Manual

Year

1997 on

Section

Circuit diagram › Fog guard lamps – circuit diagram

Fog guard lampsFog guard lamps – circuit diagram

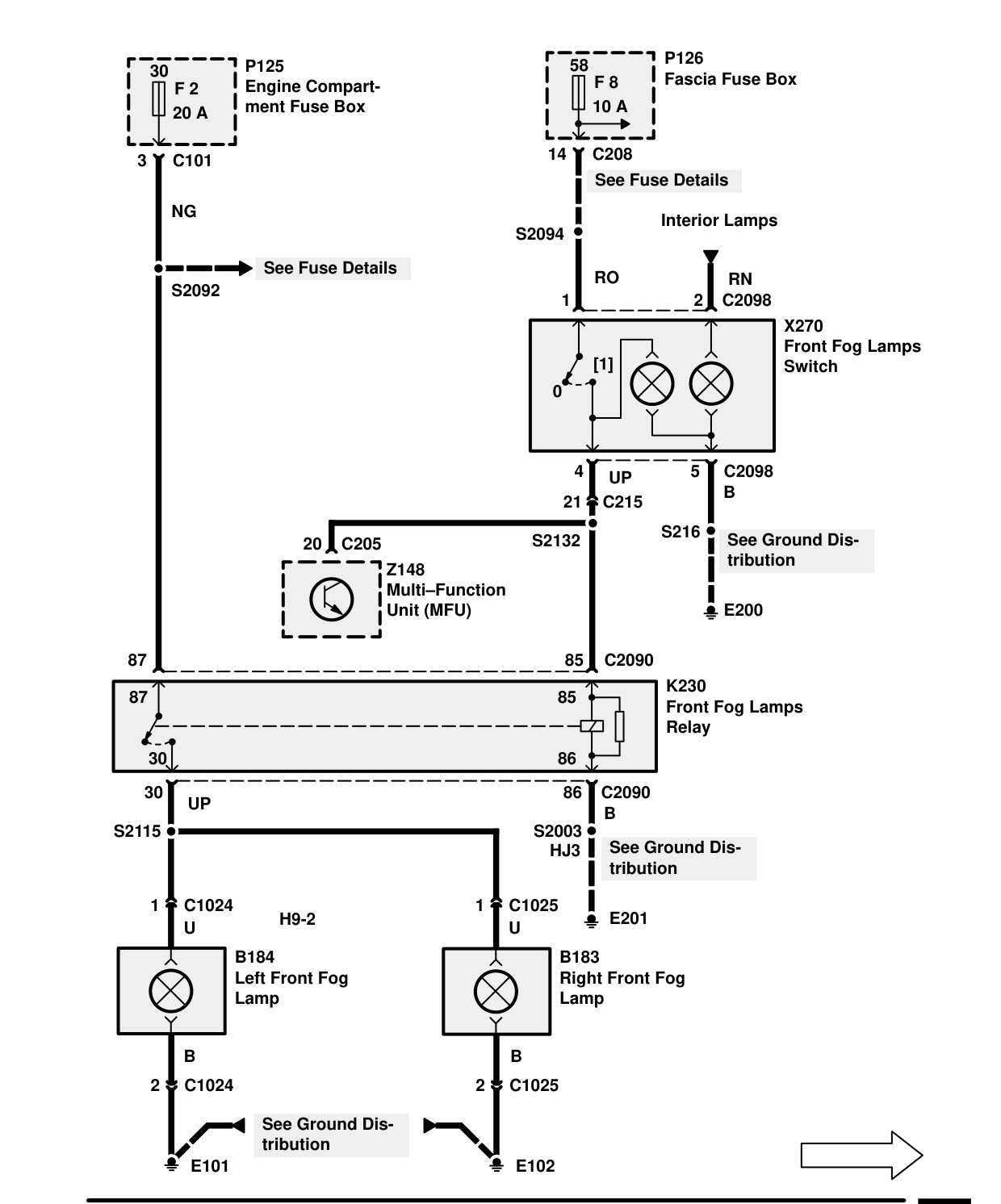

FOG GUARD LAMPS – CIRCUIT DIAGRAM

Components on this page

• B183 Right Front Fog Lamp
• B184 Left Front Fog Lamp
• K230 Front Fog Lamps Relay
• P125 Engine Compartment Fuse Box
• P126 Fascia Fuse Box
• X270 Front Fog Lamps Switch
• Z148 Multi-Function Unit (MFU)
