Trailer auxiliary socket – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Trailer auxiliary socket – circuit diagram
Trailer auxiliary socketTrailer auxiliary socket – circuit diagram

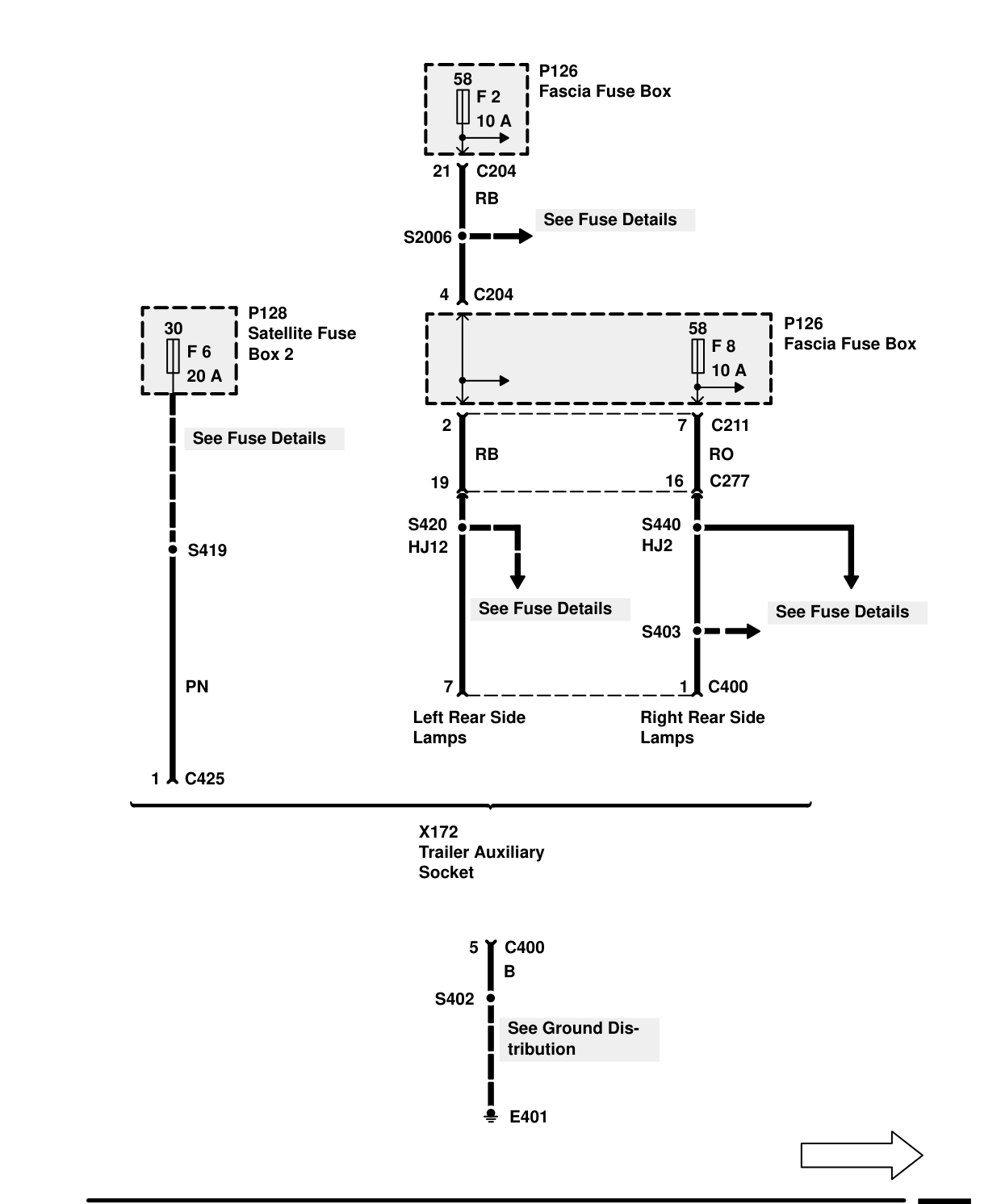

TRAILER AUXILIARY SOCKET – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box 58 F 2 10 A
- P126 Fascia Fuse Box
- P128 Satellite Fuse Box 2
- X172 Trailer Auxiliary Socket
