Direction indicator lamps – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Direction indicator lamps – circuit diagram
‹ Prev Direction indicator lamps – circuit diagramNext › Direction indicator lamps – circuit diagram
Direction indicator lampsDirection indicator lamps – circuit diagram

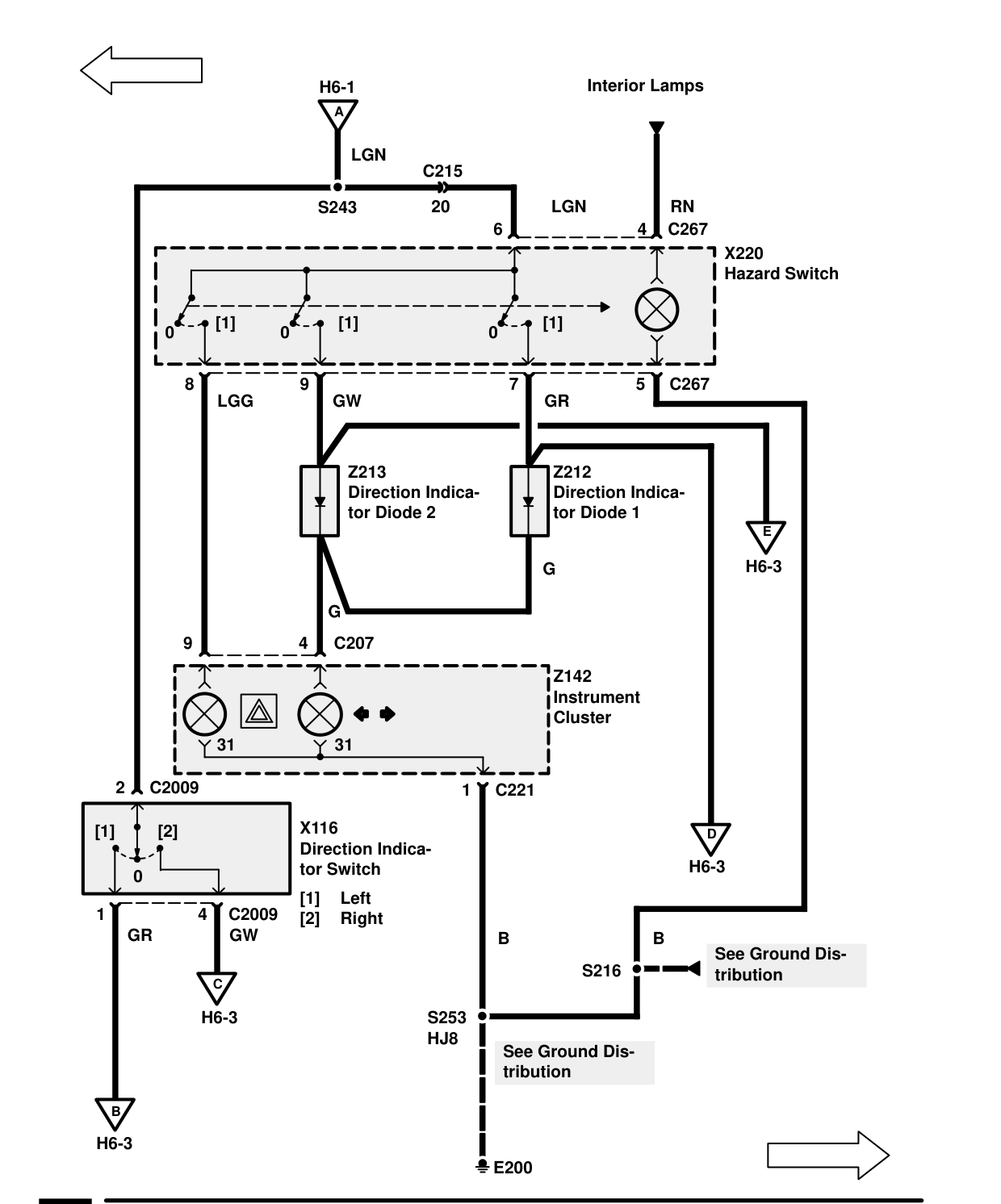

DIRECTION INDICATOR LAMPS – CIRCUIT DIAGRAM
Components on this page
- X116 Direction Indicator Switch
- X220 Hazard Switch
- Z142 Instrument Cluster
- Z212 Direction Indicator Diode 1
- Z213 Direction Indicator Diode 2
‹ Prev Direction indicator lamps – circuit diagramNext › Direction indicator lamps – circuit diagram
