Direction indicator lamps – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Direction indicator lamps – circuit diagram
Direction indicator lampsDirection indicator lamps – circuit diagram

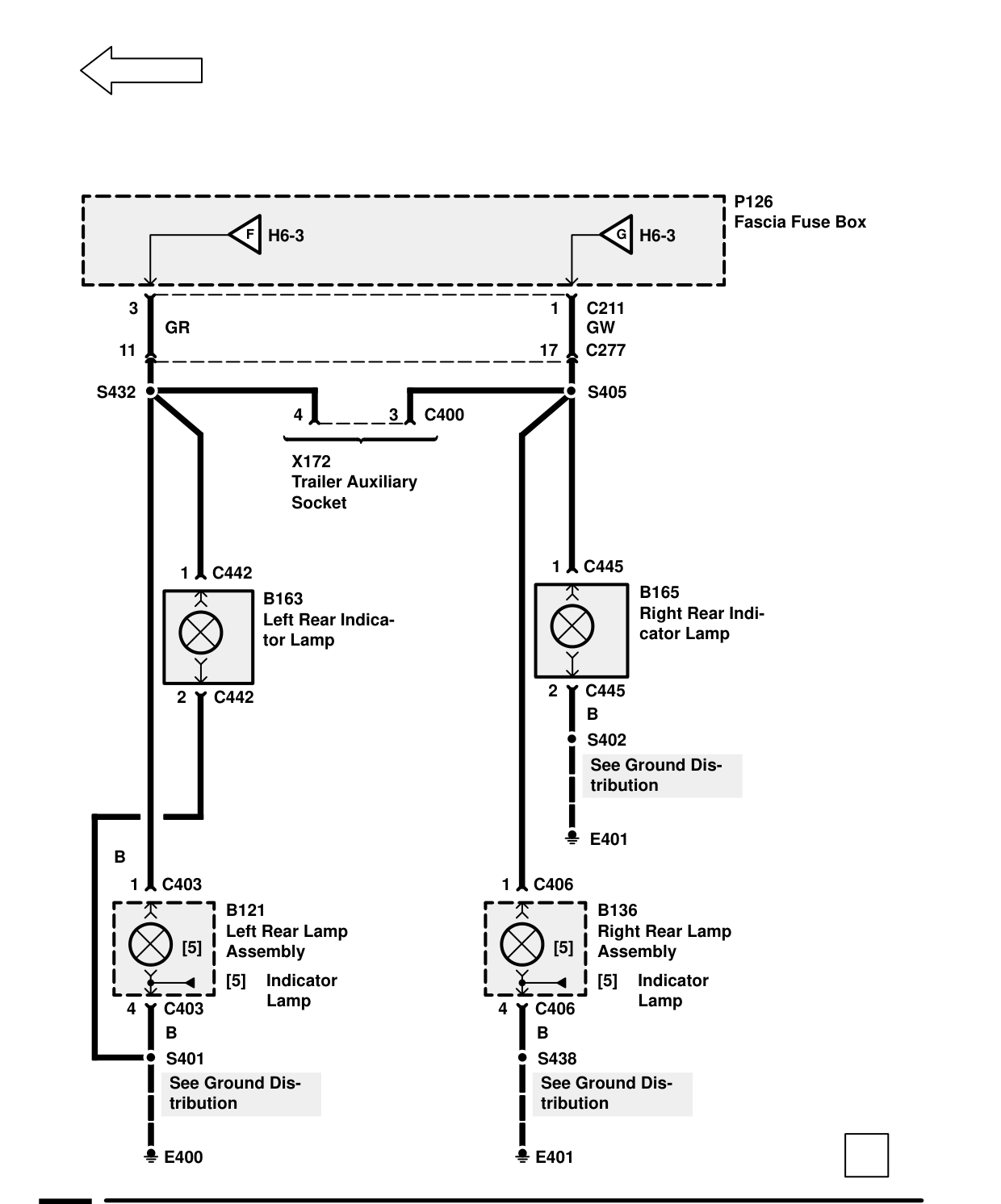

DIRECTION INDICATOR LAMPS – CIRCUIT DIAGRAM
Components on this page
- B121 Left Rear Lamp Assembly
- B136 Right Rear Lamp Assembly
- B163 Left Rear Indicator Lamp
- B165 Right Rear Indicator Lamp
- P126 Fascia Fuse Box H6-3 F
- X172 Trailer Auxiliary Socket
