Ground distribution – ground distribution (300Tdi with EDC)
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Ground distribution › Ground distribution – ground distribution (300Tdi with EDC)
‹ Prev Ground distribution – ground distribution (300Tdi without EDC)Next › Ground distribution – circuit diagram
Ground distributionGround distribution – ground distribution (300Tdi with EDC)

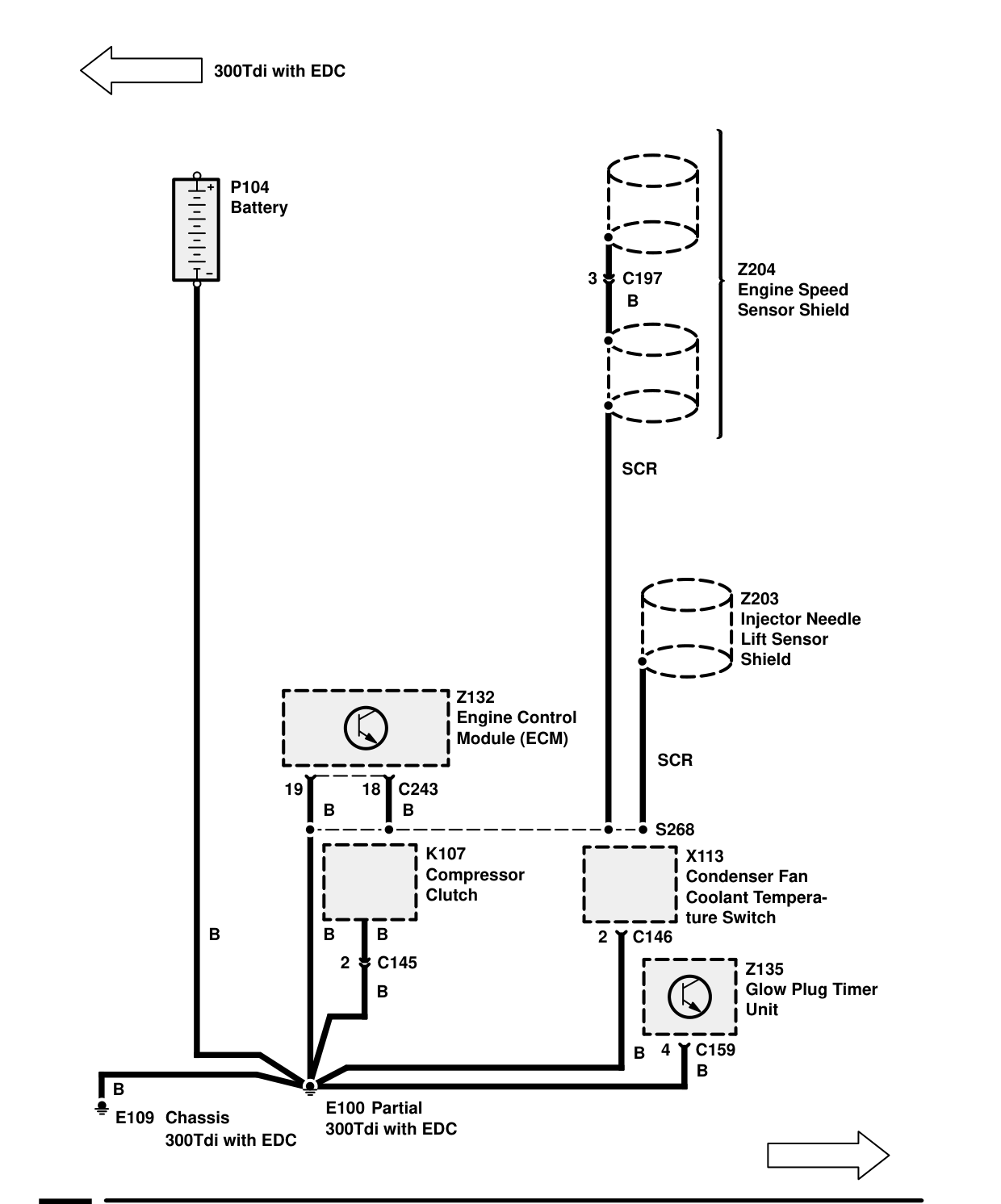

GROUND DISTRIBUTION – GROUND DISTRIBUTION (300TDI WITH EDC)
Components on this page
- E109 Chassis 300Tdi with EDC Partial
- K107 Compressor Clutch
- P104 Battery
- X113 Condenser Fan Coolant Temperature Switch 2 C146
- Z132 Engine Control Module (ECM)
- Z135 Glow Plug Timer Unit
- Z203 Injector Needle Lift Sensor Shield
- Z204 Engine Speed Sensor Shield
