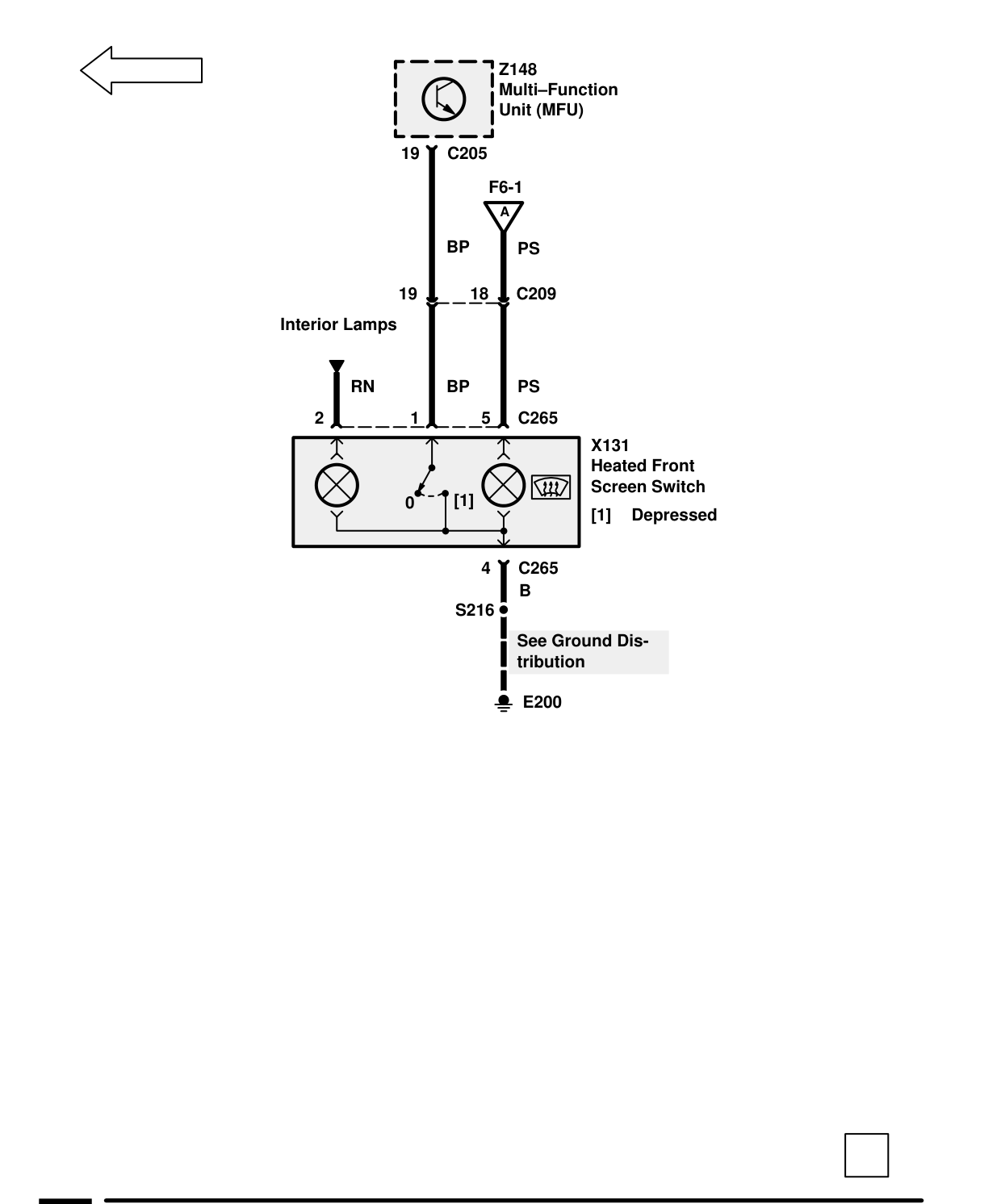

HEATED FRONT SCREEN – CIRCUIT DIAGRAM
Components on this page
- X131 Heated Front Screen Switch
- Z148 Multi-Function Unit (MFU)
